What is a phase converter?

You’ve come to a great place to Start…  How does a phase converter work and what size is most appropriate for my application?  These are the two most common questions asked.

Phase Converters

Phase Conversion is the process of converting single phase power into 3 phase power.  A “phase converter” creates a third line of voltage (a third sine wave) allowing three phase power to be possible in a single phase environment.  NAPCco offers three styles of converters Rotary, Static and Digital.

Shop Phase Converters

Types of Phase Converters

About Rotary Phase Converters

A rotary phase converter is most popular and universal type of phase converter. The rotary phase converter consist of two components.  A “idler generator” and a “control panel”.  The control panel includes a start circuit to start/stop the idler generator and capacitance to balance voltages between phases.  The idler generator is energized by the single phase power spinning a rotating mass.  This rotation generates a third line of power which is coupled with the 2 single phase line to make 3 phase power.

What will a rotary phase converter run?   A rotary converter will run every type of load (motor, resistive and inductive loads).

There are 3 types of rotary phase converters:

  • Standard Rotary Phase Converter
    • Pro-Line with digital start circuit
  • Digital Rotary Phase Converters
    • Smart-Boost™ with digital current boost mode
    • Smart-Phase™ with active digital voltage balancing
  • Rotary Converter Control Panels
    • CP (add your own idler motor)

Rotary Phase Converters

Standard Rotary Phase Converters

Pro-Line Rotary Phase Converters

Pro-Line Rotary Phase Converters are a general purpose “work horse” used to converter one phase power into 3 phase.  Pro-Line uses a “generator/idler” and power factor correction capacitors to provide utility grade 3 phase power. The pro-line is an economical solution for all types of loads – motors, resistive, inductive and CNC.

Learn More

Smart-Boost™ Rotary Phase Converters

Smart-Boost™ Digital Rotary Phase Converters are the perfect product for those hard starting / high inertia motor loads. The Smart-Boost™ is ideal for pumps, blowers, fans and compressors. The Smart-Boost™ units uses a motor-generator and a solid state electronic controller to convert single to three phase.

Learn More

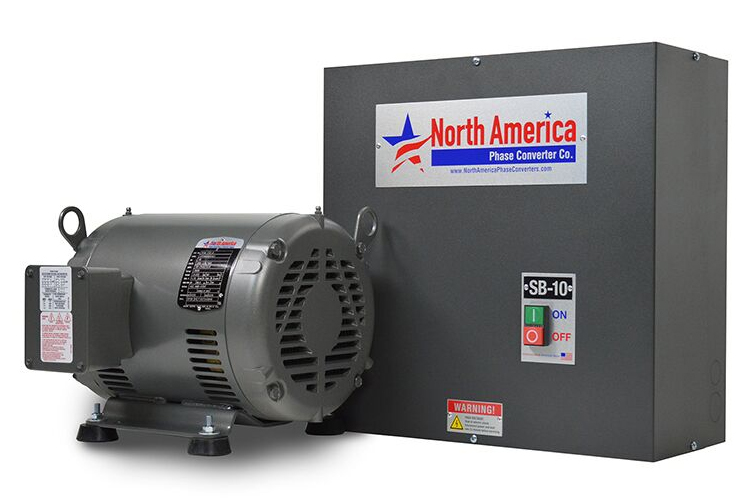

Smart Boost 10 Phase Converter

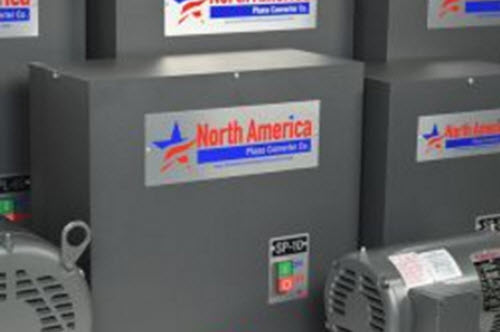

Smart-Phase™ Rotary Phase Converters

Smart-Phase™ is a digital rotary phase converters that are best suited for voltage sensitive machines and/or multiple loads running simultaneously.  It has the newest advancement in phase converters technology with 9 stage automatic voltage regulation (AVR).  Solid state switches are used to regulate the voltage and provide balanced voltage helping your equipment to run as efficient as possible.   Ideal for CNC machines, motors controlled by a VFD or equipment loaded with electronics.

Learn More

“Build you own” Rotary Converter Control Panels

Control Panels

Rotary Phase Converter Control Panels are half of a rotary phase converter.  This is for the customer that has his/her own 3 phase motor to use as an idler motor.  The rotary phase control panel includes a motor starter, power factor correction capacitors and input and output terminal block connections.

Learn More

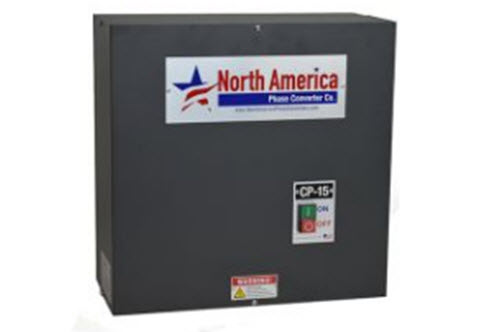

CP-20

Static Phase Converters

About Static Phase Converters

To start a 3 phase motor but run it with the 2 single phase lines a static phase converter is used. A static phase converter consists of one or more start capacitors and a start relay. The start capacitors produce electricity across the third winding of a motor during start up. Once the motor is up to speed the phase converter capacitors are disconnected from the motor winding. The motor load is now running on just the two single phase lines of power (in essence, the motor is single phasing). North America Phase Converters offers two lines of static phase converters – Heavy Duty and High-Low Double Horsepower.

About NAPCES Static Phase Converters

Static phase converters from North America Phase Converter Company (NAPCco) are masterfully engineered and manufactured for the 3 phase power needs of hobby and occasional use applications that don’t require a for their motor/equipment. Recognized as a cost-effective alternative to other types of phase converters, our Made in America static converters can be easily mounted on or near your equipment and offers easy installation and wiring.

Static Phase Converters

A static phase converter is used to generate 3 phase power during the starting of a motor.  A static phase converter consists of one or more start capacitors and a start relay.  The start capacitors produce electricity across the third winding of a motor during start up, once the motor is up to speed these capacitors are disconnected from the motor winding.  The motor load is now running on just the two single phase lines of power (in essence, the motor is single phasing).

Learn More

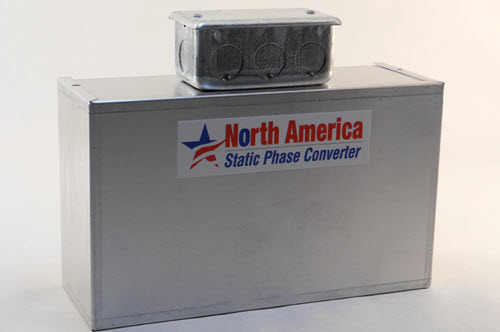

HL-5

Model Comparison

Rotary Phase Converters Static
“PL”Pro-Line “SB” Smart-Boost “SP” Smart-Phase “CP” Pro-Line Control Panels SPC and HL
Description General Purpose, Good for Single and Multiple Loads Current Booster, Better for Hard and Very Hard Starting Motor Loads  Active 8 Stage Automated Voltage Regulation, Best for every type of load Build your own Phase Converter. Add your idler motor to a CP Control Panel For Motors only – will start light and medium motor loads
Recommended Loads Mill, Tables Saw, Mixer, Ovens, Welders Air Compressors, Pumps, Fans, Lathes CNC Equipment, HVAC Build your own by adding an idler generator Light and Medium starting and running motors
Built in Starter Yes Yes Yes Yes
Booster Mode Yes Yes
Auto Voltage Regulation Yes
Digital Controlled Start Circuit Yes Yes Yes Yes Yes
Auto Controls Options Yes Yes Yes Yes
TEFC Idler Option Yes Yes Yes
Outdoor Enclosure Option Yes Yes Yes Yes
480 Volt Input/Output Yes Yes
UL/cUL Option Yes Yes Yes Yes
American Made Yes Yes Yes Yes Yes
Custom ABB/Baldor Generator Yes Yes Yes
Paralleling Option Yes Yes
Models Available 3 to 100HP models 3 to 60HP models 5 to 40HP models 3 to 60HP models 1/3HP to 10
Pricing $434 to $7249 $638 to $4582 $1295 to $4949 $209 to $895 $70 to $200
Shop Pro-Line Converters
Shop Smart Boost Converters
Shop Smart-Phase Converters
Shop Control Panels
Shop Static Converters

Common Applications

center-pivot

AGRICULTURAL APPLICATIONS

Pivots, Pumps, Grain Dryers and Handling are common applications for the rotary phase converter.   “Stacking” paralleling converters offers flexible and redundancy.  Mobile and weatherproof converters are also available for shared applications.

Learn More

FOOD SERVICE EQUIPMENT

Dough Mixers, Sheeters, Exhaust Fans, Ovens, Walk in Coolers and Freezers are easy for a good quality rotary phase converter to manage.   NAPCco offers rotary phase converters with a two component design for mounting flexibility if your area is tight on space.

Learn More
dough-mixer
welding

INDUSTRIAL & AUTOMOTIVE

Mills, Lathes, CNC, Metal Forming, Metal Bending, Air-Compressors, Cranes, Hoists and Welders are great cost-effective applications for rotary phase conversion.   “Auto Controls” is helpful with air-compressors to only run when the air compressor needs air.  Wireless remote control is very helpful with a hoist and automotive welding operations where brief operation is needed then may not be used for several hours.  Simply Velcro or attach the key fab to the machine to improve key performance time and efficiency.

Learn More

METALWORKING EQUIPMENT

CNC Vertical and Horizontal Machining Centers, Lathes, Mills, Press Brakes, Tube Bending, Shears and Iron Workers are well suited for an easy conversion into a shop, garage or manufacturing environments.  Gather the horsepower, amperage or kVA number off the side of the machines and call us (or email us)  and we will help you match the most appropriate converter for long term stable voltage balance and power.  NAPCco is a UL certified panel builder using reliable high performance digital conversion and components.  CNC’s can be fickle and cutting corners on conversion is frustrating for everyone involved.  Machining is an area of accuracy.  The NAPCco converters are custom designed to run CNC, VFD’s and voltage sensitive equipment.   This area is close to our heart because CNC equipment is what NAPCco does very well.

Learn More
milling-machine
table-saw

WOODWORKING EQUIPMENT

CNC Router Tables, Table Saws, Dust Collectors, Edge Banders, Wide Belt Sanders, Jointers, Planers and Molders are frequently used for small to large cabinet shops and hobbyist craftsmen.  Running multiple pieces of woodworking equipment at the operators convenience makes the rotary phase converters an excellent fit.   Consider growth in the case of woodworking.  Get assistance from the factory deciding what the expansion looks like so you can maximize your investment for future machines.  This is an area we often see several converters collected in a shop with a spaghetti network of power lines.   A bit of appropriate planning and a few extra dollars invested in the beginning will likely save considerable time and bottom-line value.   Also consider ordering your converter with a built in wireless remote receiver and several key fabs for fun and easy start/stop flexibility.  We have all these components in stock to build it into a reality for you.

Learn More
