PL-20 HP Pro-Line Single to 3-Phase Rotary Phase Converter

Name: PL-20 HP Pro-Line Single to 3-Phase Rotary Phase Converter
SKU: PL-20-1-D3
Price: 1899.00 USD
Availability: InStock

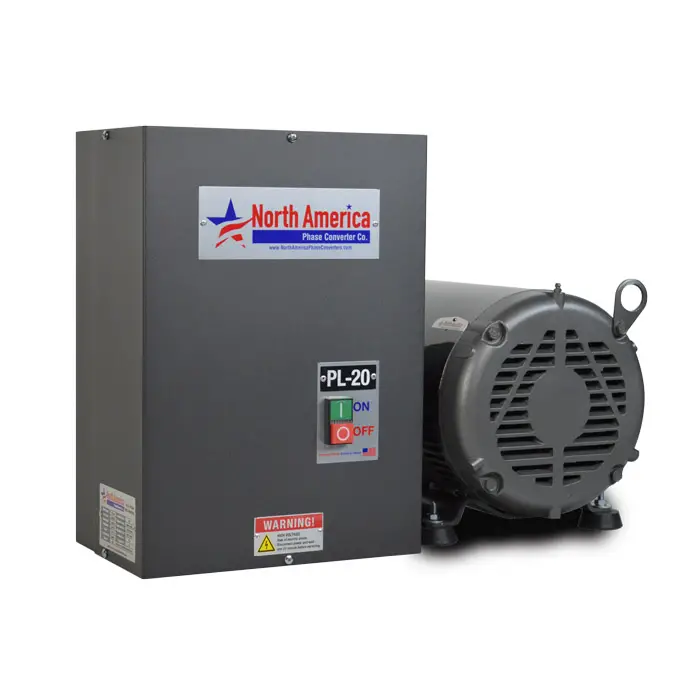

NAPCco PL-20 Pro-Line 20 HP Rotary Phase Converter with ODP Idler Motor front view white background

NAPCco PL-20 Pro-Line 20 HP Rotary Phase Converter with TEFC Totally Enclosed Fan Cooled Idler Motor

Single phase input power block with L1 and L2 terminal connections inside a NAPCco rotary phase converter

PL-20 Pro-Line – 20 HP Rotary Phase Converter

$1,899.00

The PL-20 is a CNC-rated, general-purpose 20 HP rotary phase converter designed to take typical single-phase service and supply full running current to three-phase equipment.

What’s Included with the Pro-Line PL-20 1 to 3 Phase Rotary Converter

Control Panel
- NEMA 1 Enclosure (Indoor)
- Built-in Motor Starter
- Digitally Controlled and Protected Start Circuit
- Pre-Wired and Ready to Install
- 10-Year Parts Warranty/Lifetime Labor Warranty
ABB-Baldor Electric 20 HP Custom-Made Idler Motor
- ODP (Open Drip Proof) – Indoor Rated
- Soft Start
- Copper Windings
Promotional Flat-rate Shipping ($199) via freight truck in the Continental US to a commercial location
- Additional fees apply for Residential & Lift-gate Delivery
Financing Available: Click here to apply online in minutes
Stock Status: In Stock

(Download PL-20 Spec Sheet PDF)

SKU: PL-20-1-D3 Category: Pro-Line

Description
Additional information

Description

PL-20 BEST SIZED FOR: pl20
Recommended Starting Load: 10 HP
Recommended 3-Phase FLA Sizing: 25 Amps
Total Combined Load: Please Call for Sizing (877) 545-2926

What Can the PL-20 Power?

Easy Motor Loads up to 15 HP: Table Saw, Drill Press, Milling Machine

Medium Loads up to 12.5 HP: Belt Sander, Grinder, Mixer

Hard Loads up to 10 HP: Gearhead Lathe, Dust Collector, Fan

Very Hard Loads up to 7.5 HP (Consider Smart-Boost™)… Air-Compressor, Submersible Pump

CNC and Resistive Loads up to 25 Amps

PL-20 SPECS (Download Spec Sheet): pl20 ul-20 ul20
Minimum Single-Phase Input Circuit: 50 Amps
Single-Phase Input Voltage: 208 – 250 Volts
3 Phase Output Voltage: 208 – 250 V (Based on Input)
Voltage Balance: 2 – 5%
Idler Motor HP Size: 20 HP
NAPCco Model Number: PL-20

Additional information

Weight	284 lbs
Dimensions	18 × 12 × 8 in
Series	Pro-Line
HP Rating	20 HP
Recommended Load (HP)	10 HP
Recommended Load (Amps)	25 A
Input Voltage	208-250 V
Output Voltage	208-250 V
Recommended Breaker	50 A
Output Amperage	50 A
Product Origin	USA
