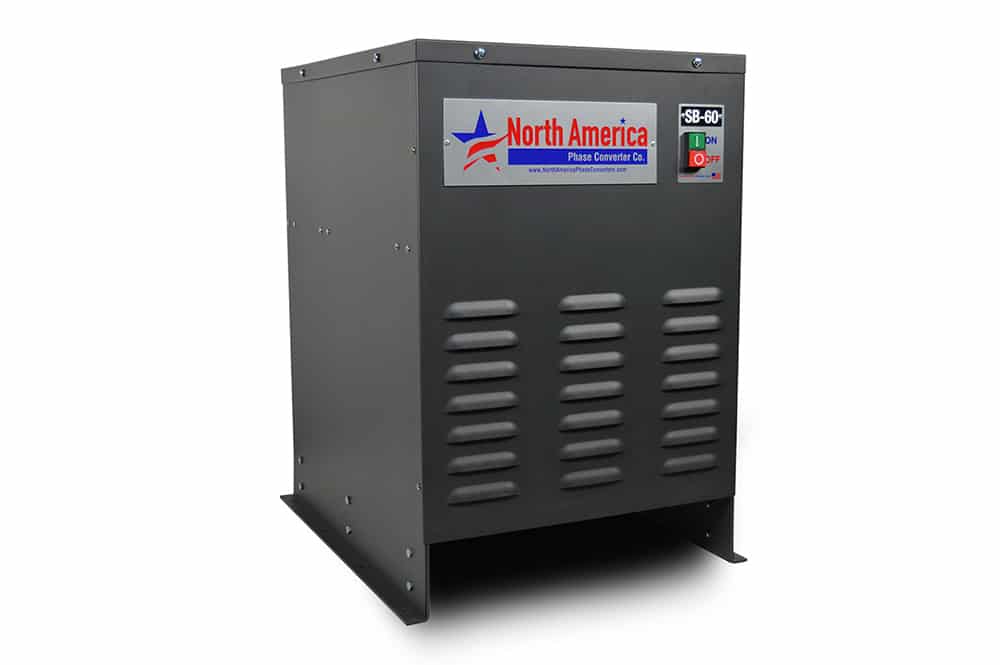

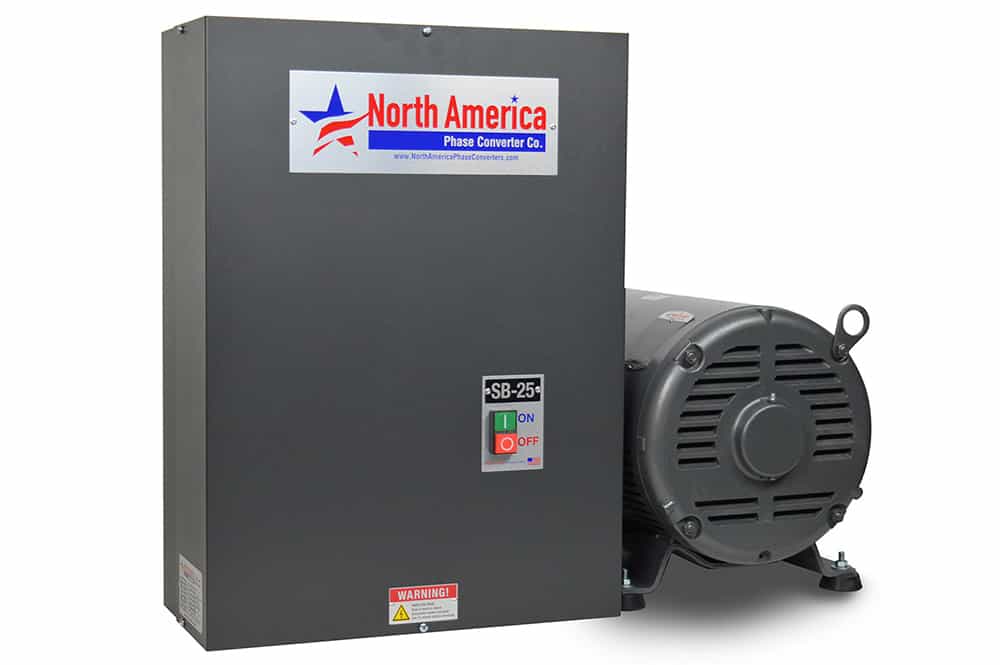

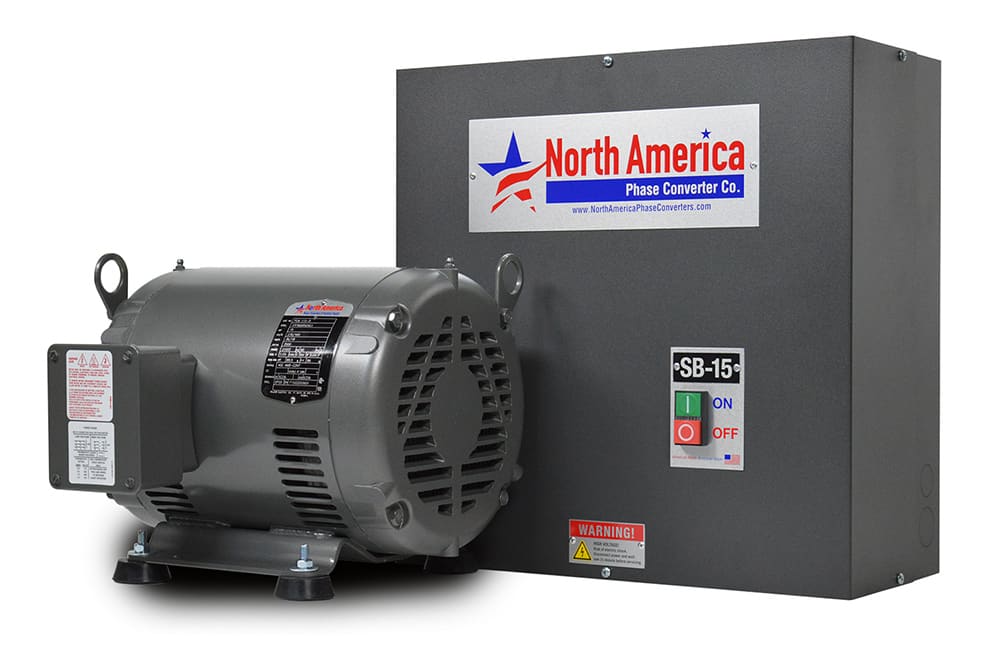

Smart-Boost™ Digital Rotary Phase Converters

Smart-Boost is a new breed of Digital Rotary Phase Converter. The Smart-Boosttechnology aids in the startup of motors external of the phase converter downstream. The Smart-Boost Controller uses solid state switching to re-engage the start capacitors at zero degree crossing. Which in turn, surges 600% more current to the motors during their startup.

Designed for: Air compressors, pumps, fans, blowers, large flywheels and any hard starting motor.

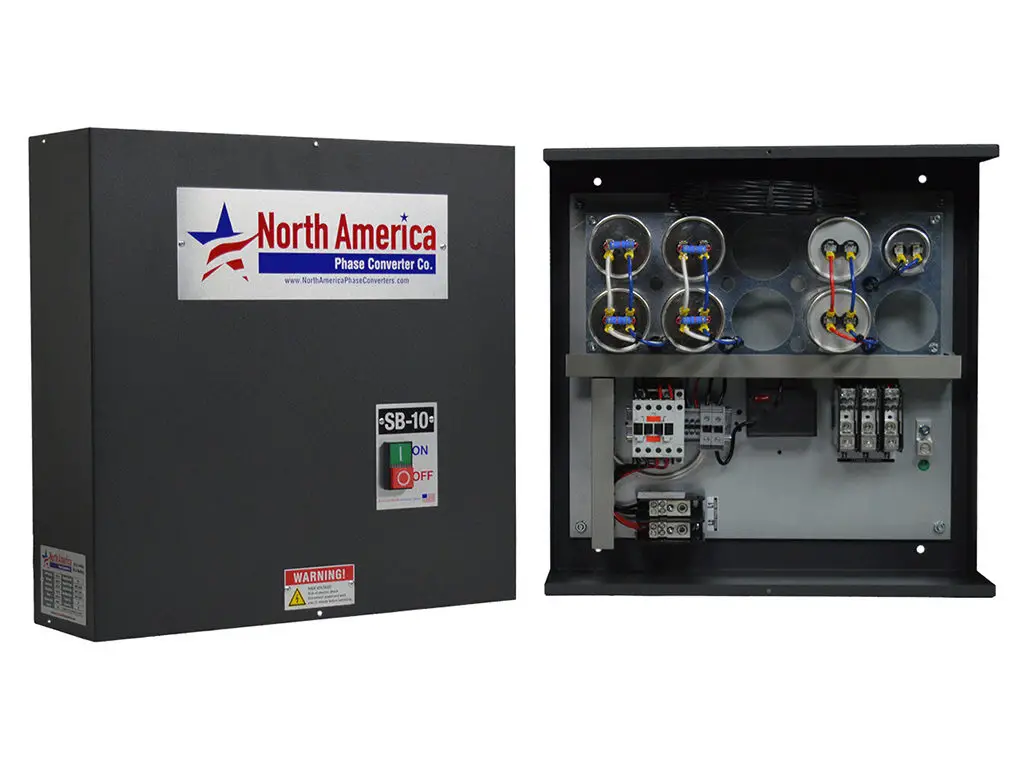

SB-10 Open panel

Control Panel Features

  • Smart-Boost™ Digital Controller
  • 400% Motor Startng Booster Current
  • Motor Starter with Start/Stop Switch
  • Output Power Failure Protection
  • High Current Protective Coils
  • Power “ON” Indicator Light
  • Large Wiring Compartment
  • Power Factor Corrected
  • Made In the USA
  • Easy to Install

Idler Motor Features

  • Custom Made Phase Converter Generators
  • Manufactured by ABB / Baldor Electric USA
  • Vacuum Pressure Impregnation for all Windings
  • Shielded Windings and Sealed Bearings
  • Low Impedance/High-Efficiency Design
  • Custom Copper Windings and Rotor
  • Corrosion Resistant Paint
  • Quiet Delta Power
  • Made in the USA

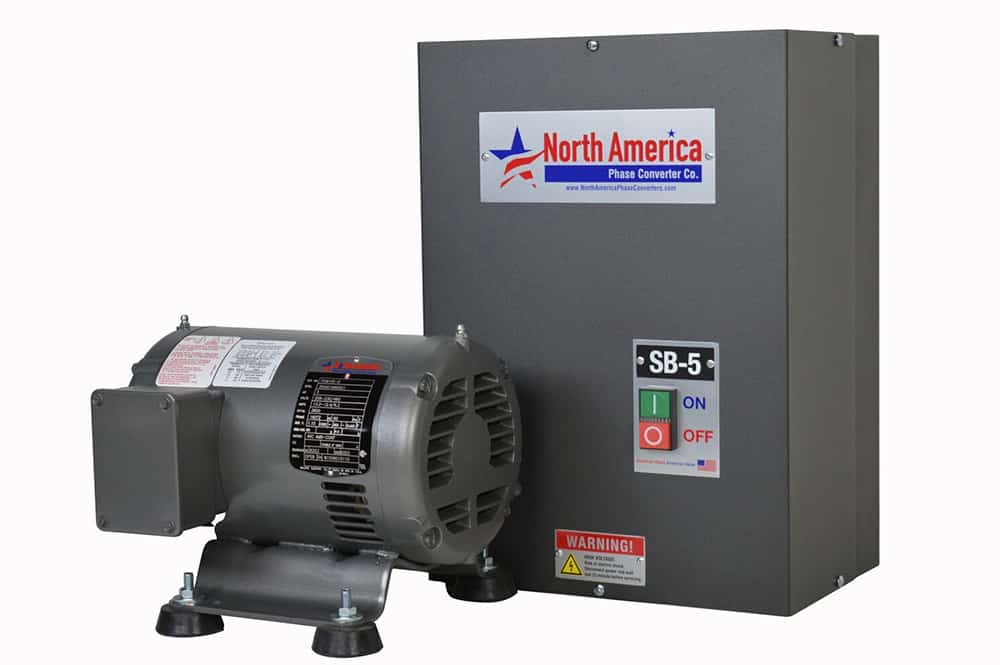

SB-5 Smart-Boost 5HP Digital Rotary Phase Converter

Available Upgrades

  • NEMA 3R Outdoor Rated Enclosures
  • ULUnderwriters Laboratory Listings
  • Wireless Key Fab Remote Starter
  • Floor Mounting Kits
  • Automatic Controls
  • Power Time Delay
  • Plugs and Outlet

Smart Boost™ Model Comparison Chart

Notes:
All amperage in table reflect 208 to 250 volt usage
Pricing includes “Rotary Phase Converter Control Panel” and “Idler Generator
Please contact us by phone (877.545.2926) or email ([email protected]) if you have any questions

Quick Sizing Guidelines for the Smart-Boost™ Rotary Phase Converters

Smart-Boost™ Model and Sizing Chart
Smart-Boost™ Rotary Converter Model Motor Loads (Horsepower) CNC, Resistive & Inductive Loads Smart-Boost™ Rotary Converter Model
Easy Med Hard Very Hard Total Amps Total kVA Total kW Spindle HP
SB-3 2 2 1.5 1.5 4 1.6 1.1 1.5 SB-3
SB-5 3 3 2.5 2.5 7 2.9 1.7 2.5 SB-5
SB-7 5 5 3 3 11 4.5 2.2 3 SB-7
SB-10 7.5 6 5 5 15 6 3.7 5 SB-10
SB-15 10 10 7.5 7.5 20 8 5.6 7.5 SB-15
SB-20 15 12 10 10 25 11 7.7 10 SB-20
SB-25 20 15 12.5 12.5 30 13 9.5 12 SB-25
SB-30 25 20 15 15 37 15 11.8 15 SB-30
SB-40 30 25 20 20 50 21 15.5 20 SB-40
SB-50 40 30 25 25 76 25 21.5 25 SB-50
SB-60 50 40 30 30 72 30 26.5 30 SB-60

Rotary Phase Converter Installation Video

30 Second Video on “How to size a Rotary Phase Converter”

Complete Details of Features

Smart-Boost Digital Controller

Smart-Boost™ Digital Controller

  •  Electronic Solid State Switching (no contacts)
  • 120 Degree Pure Sine Wave
  • Zero Degree Capacitor Switching
  • Self-Protected Power Semi Conductors – SCR
  • Voltage Differential Technology

600% Motor Starting Boost Current

  • Provides high starting current for hard starting / high inertia loads
  • Active when digital rotary phase converter starts and for every external motor start
  • Allows for flying restarts
  • Synchronization of capacitors voltage when reconnecting start

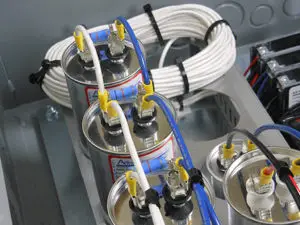

600% Motor Starting Boost Current

Built-In Motor Starter

  • Integrated magnetic motor starter complete with on/off switch
  • Power “On” indicating light lets you know the phase converter is on from across the room
  • Raised off bottom for quick shut downs

Power/Phase Protection

  • In the event of a brown out or black out, the Smart-Boost™ Converters disconnects all three line of power.
  • Protecting your machines from single phasing.
  • Protecting everyone from any electrical shock downstream after the phase converter.

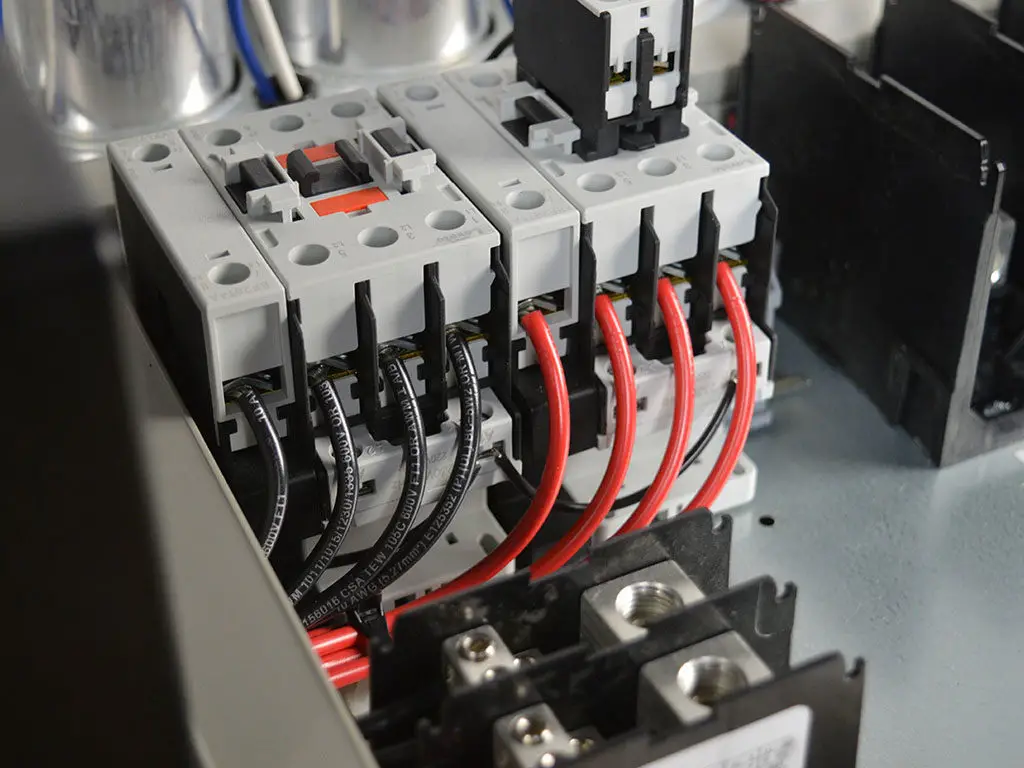

Smart-Boost Main Contactors

Easy Installation

  • Large wiring compartment
  • Removable sub panel design makes the enclosure light and easy to mount
  • Over-sized power distribution blocks are well marked and easily accessible
  • Punch out “Knock-Outs” on bottom and right sides of the enclosure

Important Extras

  • Oil and epoxy filled capacitors – no limit on the number of motor startups and can stay energized for long periods of time
  • High current protective coils – provides a layer of protection against voltage surges & fast transient short circuits
  • Large bleed resistors for extended capacitor life
  • Made in the USA by a UL 508A Certified Panel Builder located in Wisconsin
Custom designed Phase Converter Generator by Baldor USA

Custom designed Phase Converter Generator by ABB-Baldor USA

  • Built in America by ABB-Baldor USA
  • Built and designed to work with our Smart-Boost™ Controllers and as a phase converter
  • High Speed / Low Impedance Design – promotes a strong manufactured leg of power
  • Custom laminated winding design provides feedback to the Smart-Boost™ Controller

Please call us at 877-545-2926 or use our contact form …

if you have any questions about our products, features or sizing!
