PL-30 HP Pro-Line Single to 3-Phase Rotary Phase Converter

Name: PL-30 HP Pro-Line Single to 3-Phase Rotary Phase Converter
SKU: PL-30-1-D3
Price: 3449.00 USD
Availability: InStock

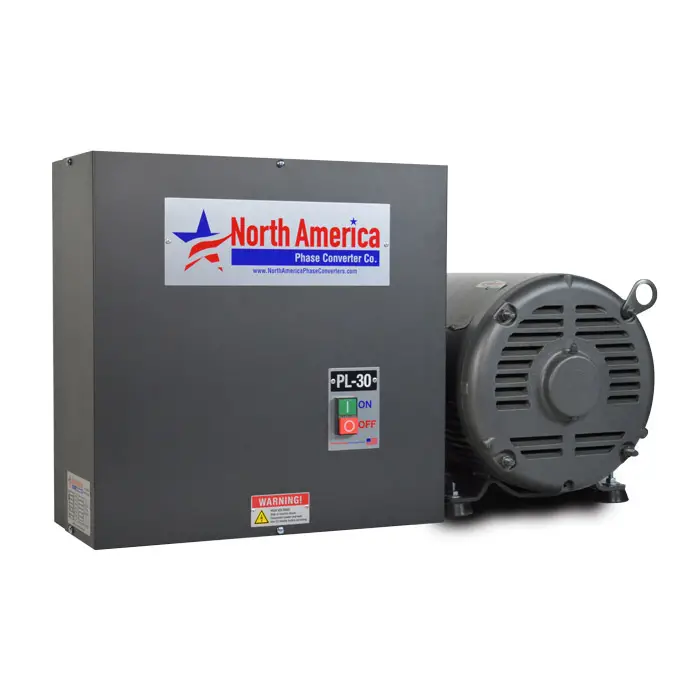

PL-30 with ODP (Open Drip Proof) Idler Motor

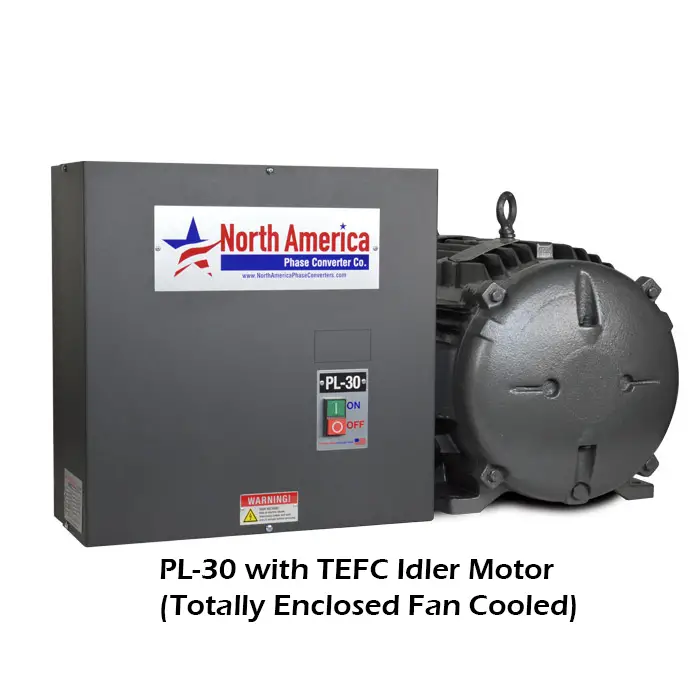

PL-30-T with TEFC (Totally Enclosed Fan Cooled) Idler Motor

Single phase input power block with L1 and L2 terminal connections inside a NAPCco rotary phase converter

Three phase output power terminal block T1 T2 T3 close-up inside NAPCco rotary phase converter

PL-30 Pro-Line – 30 HP Rotary Phase Converter

$3,449.00

The PL-30 is a CNC-rated, general purpose rotary phase converter designed to take standard single phase utility and supply full running current to three-phase equipment.

What’s Included with the PL-30

Control Panel
- NEMA 1 Enclosure (Indoor)
- Built-in Motor Starter
- Digitally Controlled and Protected Start Circuit
- Pre-Wired and Ready to Install
- 10-Year Parts Warranty/Lifetime Labor Warranty
ABB/Baldor-Electric 30 HP Custom-Made Idler Motor
- ODP (Open Drip Proof) – Indoor Rated
- Soft Start
- Copper Windings
$229 Flat-Rate Freight Shipping throughout the lower 48 states
- Residential delivery available. Most residential shipments require liftgate service. Add just $79.
Financing Available: Click here to apply online in minutes
Stock Status: In stock

(Download PL-30 Spec Sheet PDF)

SKU: PL-30-1-D3 Category: Pro-Line

Description
Additional information

Description

PL-30 BEST SIZED FOR: pl30
Recommended Starting Load: 15 HP
Recommended 3-Phase FLA Sizing: 37 Amps
Total Combined Load: Please Call for Sizing (877) 545-2926

What Can the PL-30 Power?

Easy Motor Loads up to 25 HP: Table Saw, Drill Press, Milling Machine

Medium Loads up to 20 HP: Belt Sander, Grinder, Mixer

Hard Loads up to 15 HP: Gearhead Lathe, Dust Collector, Fan

Very Hard Loads up to 10 HP (Consider Smart-Boost™)… Air-Compressor, Submersible Pump

CNC and Resistive Loads up to 37 Amps

PL-30 SPECS (Download Spec Sheet): pl30 ul-30 ul30 pl-30-1-D3
Minimum Single-Phase Input Circuit: 70 Amps
Single-Phase Input Voltage: 208 – 250 Volts
3 Phase Output Voltage: 208 – 250 V (Based on Input)
Voltage Balance: 2 – 5%
Idler Motor HP Size: 30 HP
NAPCco Model Number: PL-30

Additional information

Weight	355 lbs
Dimensions	18 × 18 × 8 in
Series	Pro-Line
HP Rating	30 HP
Recommended Load (HP)	15 HP
Recommended Load (Amps)	37 A
Input Voltage	208-250 V
Output Voltage	208-250 V
Recommended Breaker	70 A
Output Amperage	74 A
Product Origin	USA
