PL-15 HP Pro-Line Single to 3-Phase Rotary Phase Converter

Name: PL-15 HP Pro-Line Single to 3-Phase Rotary Phase Converter
SKU: PL-15-1-D3
Price: 1699.00 USD
Availability: InStock

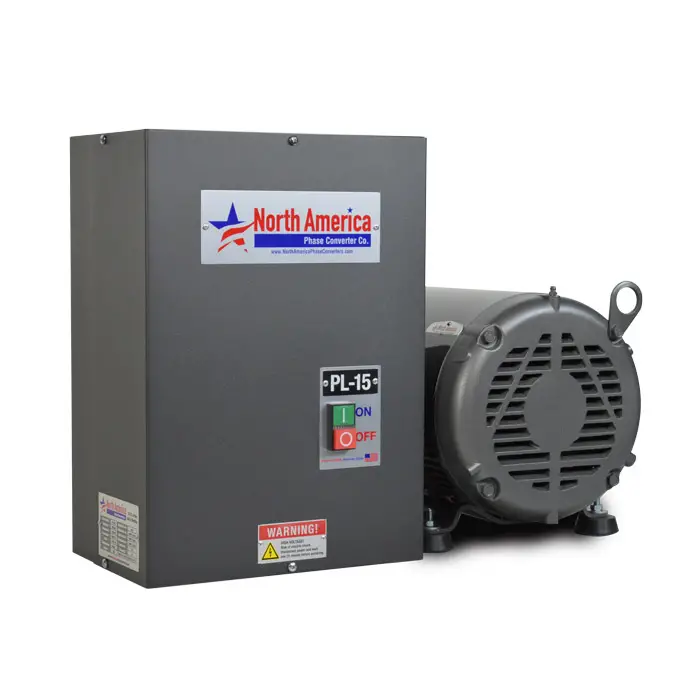

PL-15 with ODP (Open Drip Proof) Idler Motor

PL-15 with TEFC (Totally Enclosed Fan Cooled) Idler Motor

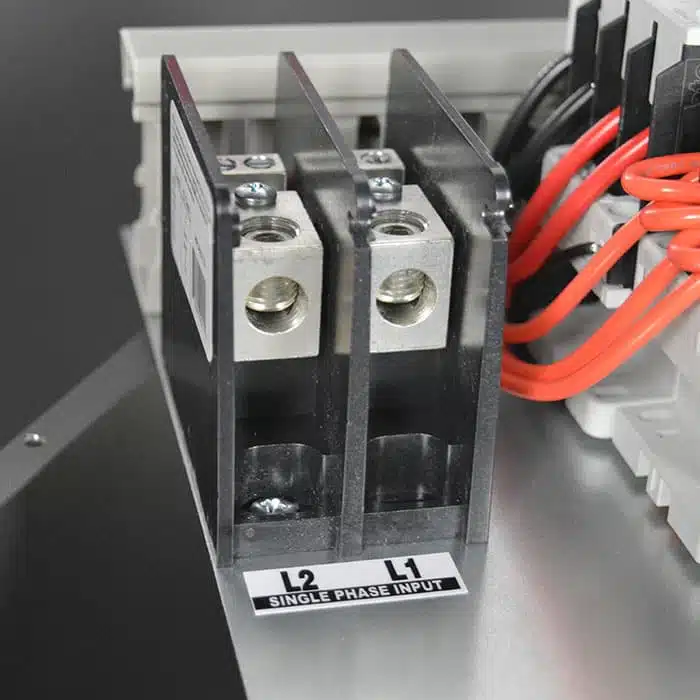

Single phase input power block with L1 and L2 terminal connections inside a NAPCco rotary phase converter

PL-15 Pro-Line – 15 HP Rotary Phase Converter

$1,699.00

A PL-15 is a CNC-rated, general-purpose rotary phase converter designed to take typical single-phase service and supply full running current to three-phase equipment.

What’s Included with the Pro-Line PL-15 HP Rotary Phase Converter

Control Panel
- NEMA 1 Enclosure (Indoor)
- Built-in Motor Starter
- Digitally Controlled and Protected Start Circuit
- Pre-Wired and Ready to Install
- 10-Year Parts Warranty/Lifetime Labor Warranty
ABB-Baldor Electric 15 HP Custom-Made Idler Motor
- ODP (Open Drip Proof) – Indoor Rated
- Soft Start
- Copper Windings
Promotional Flat-rate Shipping ($199.95) via freight truck in the Continental US to a commercial location
- Additional fees apply for Residential & Lift-gate Delivery
Financing Available: Click here to apply online in minutes
Stock Status: In stock

(Download PL-15 Spec Sheet PDF)

SKU: PL-15-1-D3 Category: Pro-Line

Description
Additional information

Description

PL-15 BEST SIZED FOR: pl15
Recommended Starting Load: 7.5 HP
Recommended 3-Phase FLA Sizing: 20 Amps
Total Combined Load: Please Call for Sizing (877) 545-2926

What Can the PL-15 Power?

Easy Motor Loads up to 10 HP: Table Saw, Drill Press, Milling Machine

Medium Loads up to 7.5 HP: Belt Sander, Grinder, Mixer

Hard Loads up to 7.5 HP: Gearhead Lathe, Dust Collector, Fan

Very Hard Loads up to 5 HP (Consider Smart-Boost™): Air-Compressor, Submersible Pump

CNC and Resistive Loads up to 20 Amps

PL-15 SPECS (Download Spec Sheet): PL15 ul-15 ul15
Minimum Single-Phase Input Circuit: 40 Amps
Single-Phase Input Voltage: 208 – 250 Volts
3 Phase Output Voltage: 208 – 250 V (Based on Input)
Voltage Balance: 2 – 5%
Idler Motor HP Size: 15 HP
NAPCco Model Number: PL-15

Additional information

Weight	178 lbs
Dimensions	18 × 12 × 8 in
Series	Pro-Line
HP Rating	15 HP
Recommended Load (HP)	7.5 HP
Recommended Load (Amps)	20 A
Input Voltage	208-250 V
Output Voltage	208-250 V
Recommended Breaker	40 A
Output Amperage	39 A
Product Origin	USA
