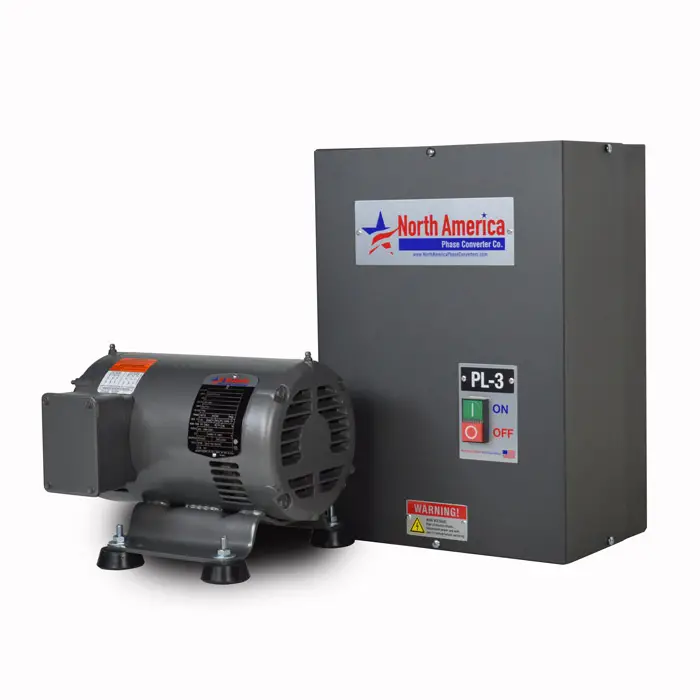

PL-3 with ODP (Open Drip Proof) Idler Motor
PL-3 with ODP (Open Drip Proof) Idler Motor
PL-3 with TEFC (Totally Enclosed Fan Cooled) Idler Motor
PL-3 Floor Mount Kit
UL-3 UL-Listed Industrial Control Panel and UL Recognized Idler Motor
Input-Power-Block
3-phase-output-terminal-block

Pro-Line Rotary Phase Converter PL-3

$564.00

Pro-Line is the Professional Series, digital start, CNC rated, general purpose single phase to three phase rotary phase converter designed to take common single phase energy and supply full running current to three phase equipment.

What’s Included with the Pro-Line Rotary Phase Converter PL-3

  • Control Panel
    • NEMA 1 Enclosure (Indoor)
    • Built-in Motor Starter
    • Digitally Controlled and Protected Start Circuit
  • ABB-Baldor Idler/Generator Motor
    • ODP (Open Drip Proof) – Indoor Rated
    • Soft Start
  • 10 Year Parts / Lifetime Labor Warranty
  • Promotional Flat-rate Ground Shipping ($39.95) in the Continental US
  • Financing Available
    • 98 $
    • 20 $
    • 175 $
    • 65 $
    • 20 $
    • 75 $
SKU: PL-3-0-1 Category:

Description

PL-3 BEST SIZED FOR:  pl3
Best Performance Single Motor Start:  1.5HP
Recommended 3 Phase Sizing:   4 Amps
Total Combined Load:  Please Call for Sizing (877) 545-2926

Easy Motor Loads up to 2.5HP…  Table Saw, Drill Press, Milling Machine
Medium Loads up to 2HP… Belt Sander, Grinder, Mixer
Hard Loads up to 1.5HP…  Gearhead Lathe, Dust Collector, Fan
Very Hard Loads up to 1HP (Consider Smart-Boost™)…  Air-Compressor, Submersible Pump

PL-3 SPECS (Download Spec Sheet):  pl3ul-3  ul3
Minimum Single Phase Input Circuit:   10 Amps
Single Phase Input Voltage:   208 – 245 Volts
3 Phase Output Voltage:   208 – 245 (Based on Input)
Voltage Balance:   5 – 8%
Idler HP Size:   3
Model:   PL-3

Additional information

Weight 87 lbs
Dimensions 17 × 12 × 8 in
