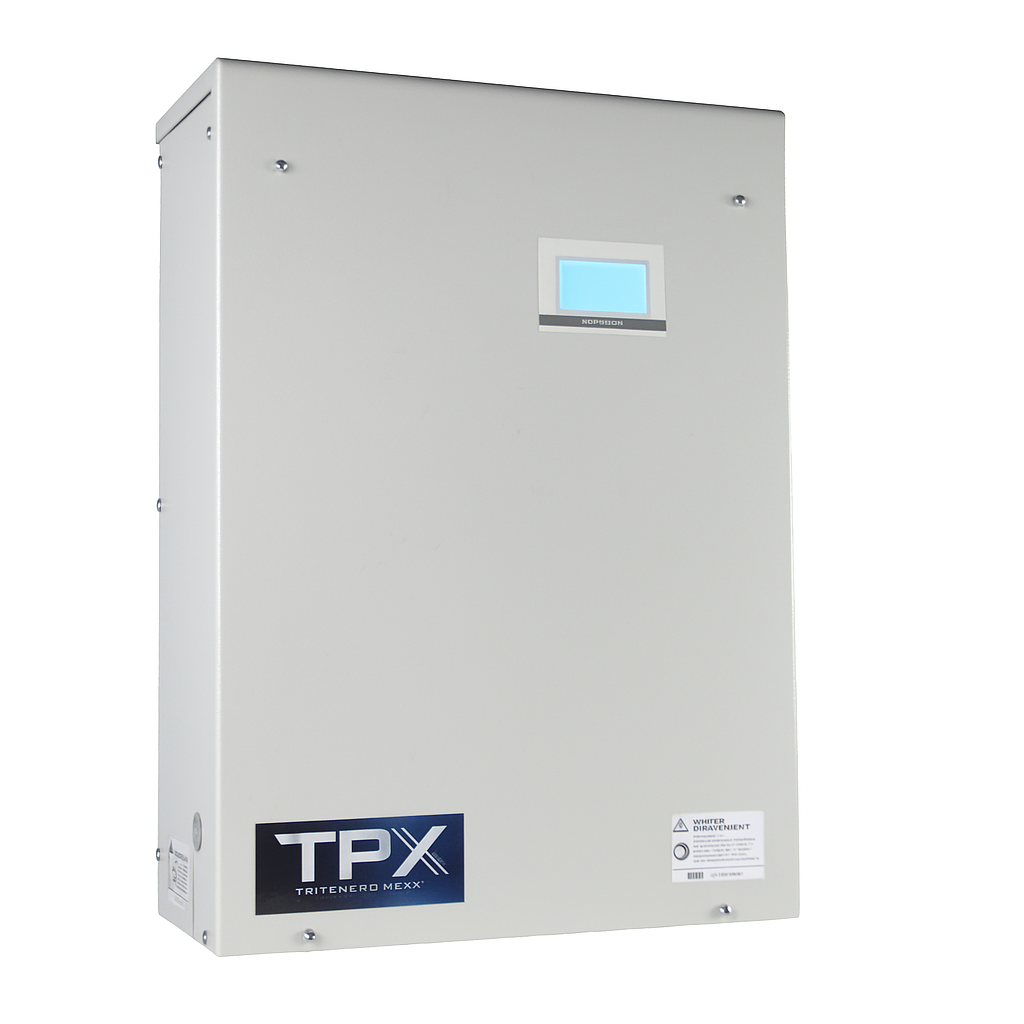

TritonPro Maxx Digital Phase Converter
Introducing the TritonPro Maxx, North America Phase
Converter’s newest digital solution that uses cutting-edge
electronic technology to convert single-phase power into
three-phase power.
The TritonPro Maxx is a line of digital phase converters
proudly made in the USA. Digital phase converters differ
from traditional rotary and static phase converters by
using high-speed, solid-state switching electronic technology. The Triton Pro Maxx’s integrated microprocessor
continuously monitors the output voltage to keep the
voltage balance within 1-2%, all while providing a

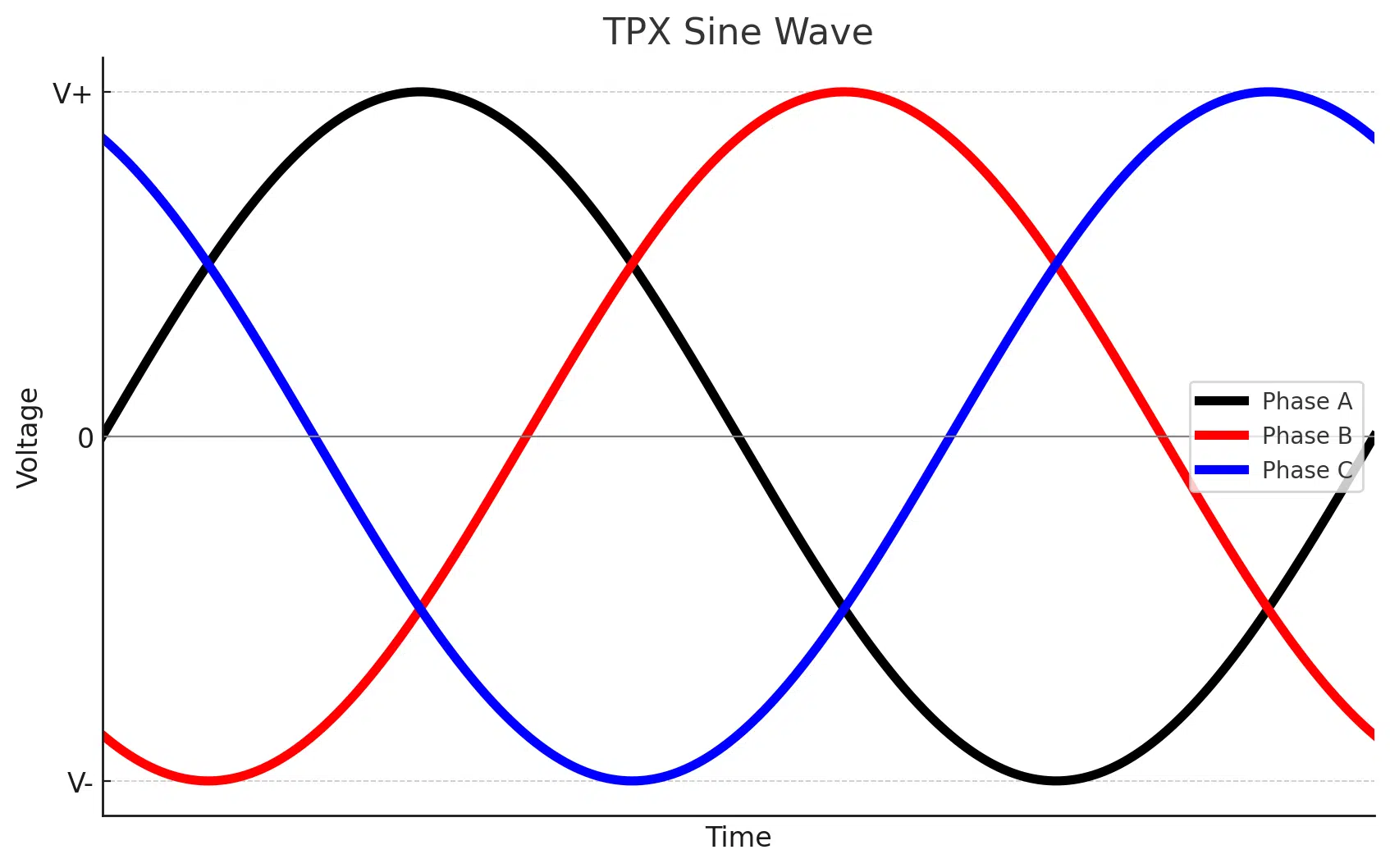

smooth, continuous three-phase output sine wave.
Designed for efficiency, safety, and dependability, the TritonPro Maxx is the ideal solution for powering all types of three-phase machinery and equipment.
TritonPro Maxx Features
• Advanced Solid-State power switching
technology
• Phase-to-Phase Voltage Balance within 2%
• Over and Under Voltage Protection
• Voltage and Amperage Status Display
• Simple Installation
• Low Standby Power Consumption
• High Efficiency
• Made in the USA
Available Options
• NEMA 3R Outdoor Enclosures
• On/off Switch
• Surge Protection
• Extended Warranties
• Branch Circuit Protection
• Voltage Doubler
• 480 Volt Input/Output
TritonPro Maxx Model Comparison Chart
| Model | Input/Output voltage rating | Max Output Amps | Single Phase Max Circuit Size | Standby Power Usage | Weight | Dimension (H x W x D) | Price | Product Page/Order | Spec Sheet |
|---|---|---|---|---|---|---|---|---|---|
| TPX-18e | 187-260 V | 18 A | 31 A | 68 watts | 31 lbs | 21" x 15" x 7.5" | $1,625 | Shop Now | Download |
| TPX-26e | 187-260 V | 26 A | 45 A | 70 watts | 52 lbs | 21" X 15' X 7.5" | $2,145 | Shop Now | Download |
| TPX-36e | 187-260 V | 36 A | 60 A | 74 watts | 52 lbs | 28" X 9" X 12" | $2,698 | Shop Now | Download |
| TPX-52e | 187-260 V | 52 A | 90 A | 77 watts | 57 lbs | 28" X 9" X 12" | $4,778 | Shop Now | Download |
| TPX-64e | 187-260 V | 64 A | 110 A | 80 watts | 57 lbs | 28" X 9" X 12" | $5,996 | Shop Now | Download |
| TPX-79 | 187-260 V | 79 A | 123 A | 127 Watts | 124 lbs | 40" x 17" x 10" | $8,059 | Shop Now | Download |
| TPX-95 | 187-260 V | 95 A | 160 A | 175 watts | 230 lbs | 45" X 26" X 19" | $9,187 | Shop Now | Download |
| TPX-130 | 187-260 V | 130 A | 225 A | 190 watts | 259 lbs | 45" X 26" X 19" | $9,987 | Shop Now | Download |
| TPX-165 | 187-260 V | 165 A | 275 A | 235 watts | 270 lbs | 45" X 26" X 19" | $16,898 | Shop Now | Download |
| TPX-190 | 187-260 V | 190 A | 300 A | 260 watts | 285 lbs | 45" X 26" X 19" | $19,349 | Shop Now | Download |
| TPX-240e | 187-260 V | 240 A | 400 A | 300 watts | 288 lbs | 45" X 26" X 19" | $24,925 | Shop Now | Download |
Notes:
All amperage in table reflect 208 to 250 volt usage
Please contact us by phone (877.545.2926) or email ([email protected]) if you have any questions
TritonPro Maxx Digital Phase Converter Detailed Features
Perfectly Balanced Power
Our microcontroller actively regulates the output voltage, providing a phase-tophase voltage balance within 2% under any load condition. A stable voltage balance ensures that the machinery operates at peak performance and prolongs its lifespan. The TritonPro Maxx’s voltage balancing capabilities makes it ideal for CNC machines or any voltage sensitive equipment.
Energy Efficient
Our digital phase converter uses solid-state technology, which leads to minimal heat generation. This in turn translates to lower energy consumption and higher efficiency. This makes them ideal for elevators, pumps, air compressors, or any equipment that is unattended for prolonged periods of time.
Simple Installation

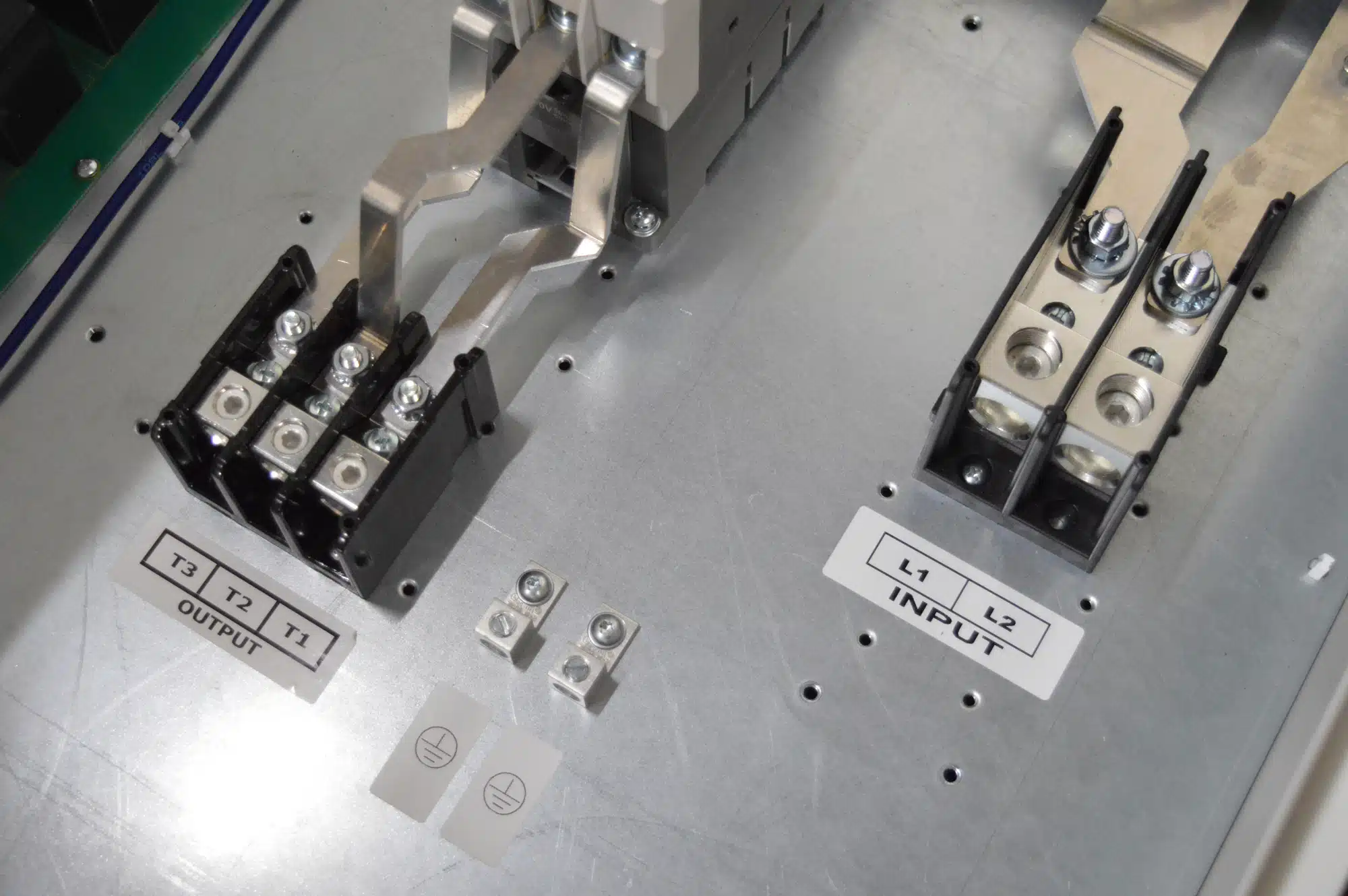

The TritonPro Maxx was designed with plug-and-run simplicity in mind, with easy to access terminal blocks and contactors. Installation doesn’t require programming, and the conveniently located knockouts on the bottom and large wiring compartment allows for seamless installation.
Made in the USA
The TritonPro Maxx is a cost-effective and reliable digital phase converter proudly made in the USA. Everything from start to finish, including engineering, manufacturing, customer service, and tech support is located in the United States.
