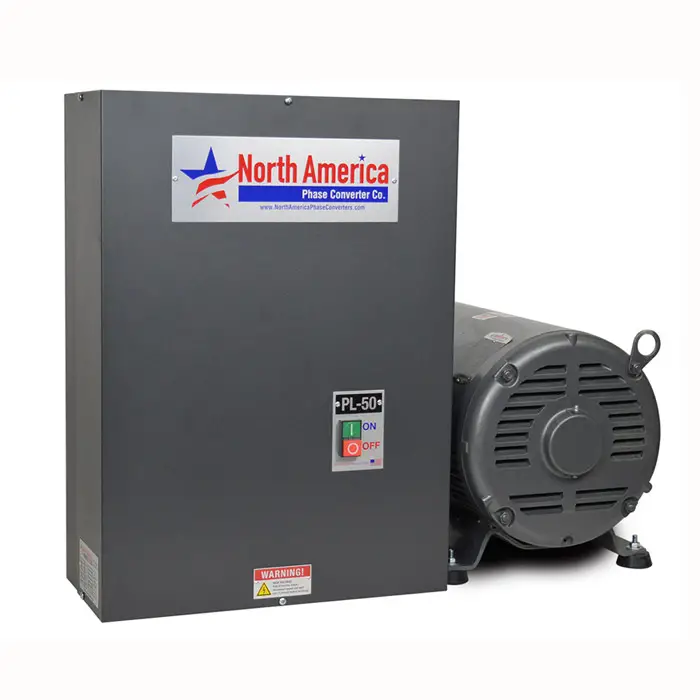

PL-50 Pro-Line – 50 HP Rotary Phase Converter

PL-50 Pro-Line – 50 HP Rotary Phase Converter

$4,794.00

The PL-50 is a CNC-rated, general-purpose rotary phase converter designed to take standard single-phase service and supply full running current to three-phase equipment. Made for CNC machines, woodworking, metalworking, food service, agricultural equipment, and more.

What’s Included with the Pro-Line PL-50

  • Control Panel
    • NEMA 1 Enclosure (Indoor)
    • Built in Motor Starter
    • Digitally Controlled and Protected Start Circuit
    • 10-Year Parts Warranty/Lifetime Labor Warranty
  • ABB-Baldor Electric 50 HP Custom-Made Idler Motor
    • ODP (Open Drip Proof) – Indoor Rated
    • Soft Start
  • Promotional Flat-rate Shipping ($249) via freight truck in the Continental US to a commercial location
    • Additional fees apply for Residential & Lift-gate Delivery
  • Financing Available: Click here to apply online in minutes
  • Stock Status:  In Stock

  • Available Options
SKU: PL-50-1-D3 Category:

Description

PL-50 BEST SIZED FOR:  pl50
Recommended Starting Load: 25 HP
Recommended 3-Phase FLA Sizing: 61 Amps
Total Combined Load: Please Call for Sizing (877) 545-2926

What Can the PL-50 Power?

Easy Motor Loads up to 40 HP: Table Saw, Drill Press, Milling Machine

Medium Loads up to 30 HP: Belt Sander, Grinder, Mixer

Hard Loads up to 25 HP: Gearhead Lathe, Dust Collector, Fan

Very Hard Loads up to 20 HP (Consider Smart-Boost™): Air-Compressor, Submersible Pump

CNC and Resistive Loads up to 61 Amps

PL-50 SPECS (Download Spec Sheet):  pl50  ul-50  ul50
Minimum Single-Phase Input Circuit: 125 Amps
Single-Phase Input Voltage:   208 – 250 Volts
3 Phase Output Voltage:   208 – 250 V (Based on Input)
Voltage Balance: 2 – 5%
Idler Motor HP Size: 50 HP
NAPCco Model Number: PL-50

Additional information

Weight 428 lbs
Dimensions 25 × 18 × 8.5 in
Series

Pro-Line

HP Rating

50 HP

Input Voltage

208-250 V

Output Voltage

208-250 V

Output Amperage

120 A

Product Origin

USA
