Pro-Line Rotary Phase Converter PL-25

Pro-Line Rotary Phase Converter PL-25

$2,469.00

Pro-Line is the Professional Series, digital start, CNC rated, general-purpose single phase to three phase rotary phase converter designed to take common single-phase energy and supply full running current to three-phase equipment.

What’s Included with the Pro-Line PL-25 Rotary Converter

  • Control Panel
    • NEMA 1 Enclosure (Indoor)
    • Built-in Motor Starter
    • Digitally Controlled and Protected Start Circuit
  • ABB / Baldor Idler Generator Motor

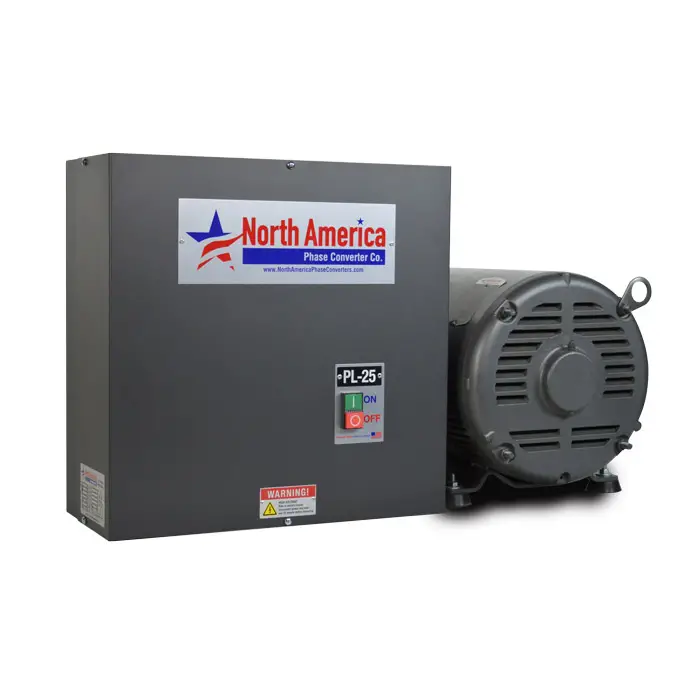

    • ODP (Open Drip Proof) – Indoor Rated
    • Soft Start
  • 10-Year Parts / Lifetime Labor Warranty
  • Promotional Flat-rate Shipping ($179.95) via freight truck in the Continental US to a commercial location
    • Additional fees apply for Residential & Lift-gate Delivery
  • Financing Available
  • Stock Status:  In stock

    • 95 $
    • 685 $
    • 125 $
    • 25 $
    • 175 $
    • 65 $
    • 59 $
    • 20 $
    • 95 $
    • 80 $
SKU: PL-25-1-0 Category:

Description

PL-25 BEST SIZED FOR:  pl25
Best Performance Single Motor Start:  12.5HP
Recommended 3 Phase Sizing:   30 Amps
Total Combined Load:  Please Call for Sizing (877) 545-2926

Easy Motor Loads up to 20HP…  Table Saw, Drill Press, Milling Machine
Medium Loads up to 15HP… Belt Sander, Grinder, Mixer
Hard Loads up to 12HP…  Gearhead Lathe, Dust Collector, Fan
Very Hard Loads up to 10HP (Consider Smart-Boost)…  Air-Compressor, Submersible Pump

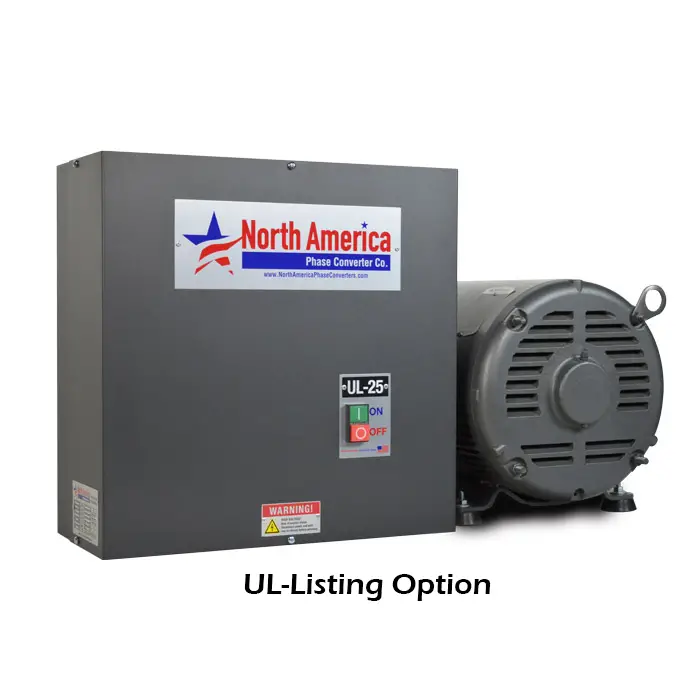

PL-25 SPECS (Download Spec Sheet)pl25  ul-25  ul25
Minimum Single Phase Input Circuit  60 Amps
Single Phase Input Voltage:   208 – 245 Volts
3 Phase Output Voltage:   208 – 245 (Based on Input)
Voltage Balance:   2 – 5%
Idler HP Size:   25
Model:   PL-25

Additional information

Weight 308 lbs
Dimensions 18 × 18 × 8 in
