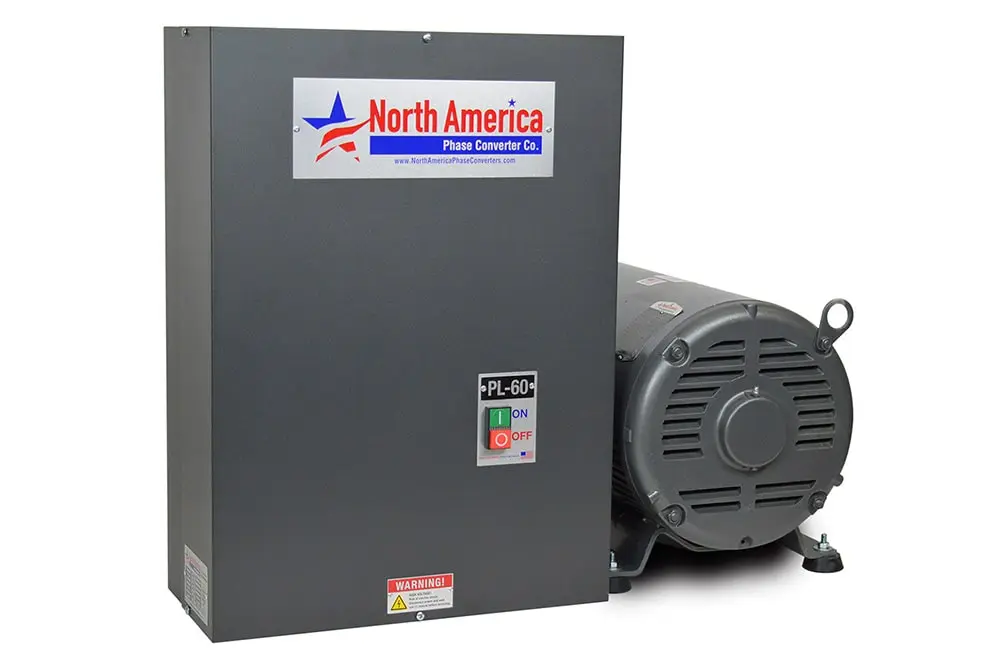

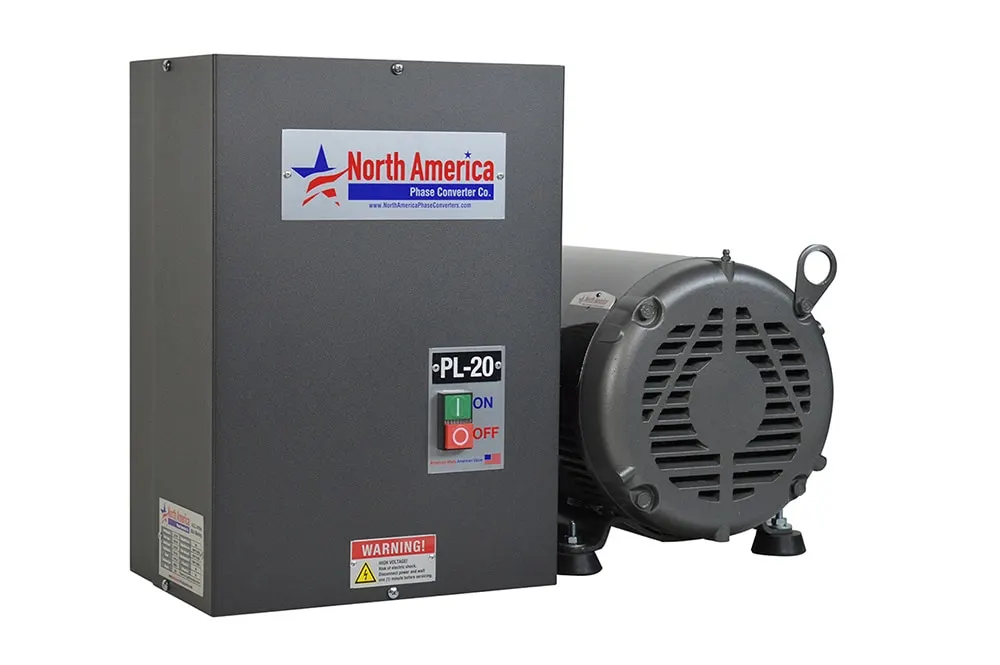

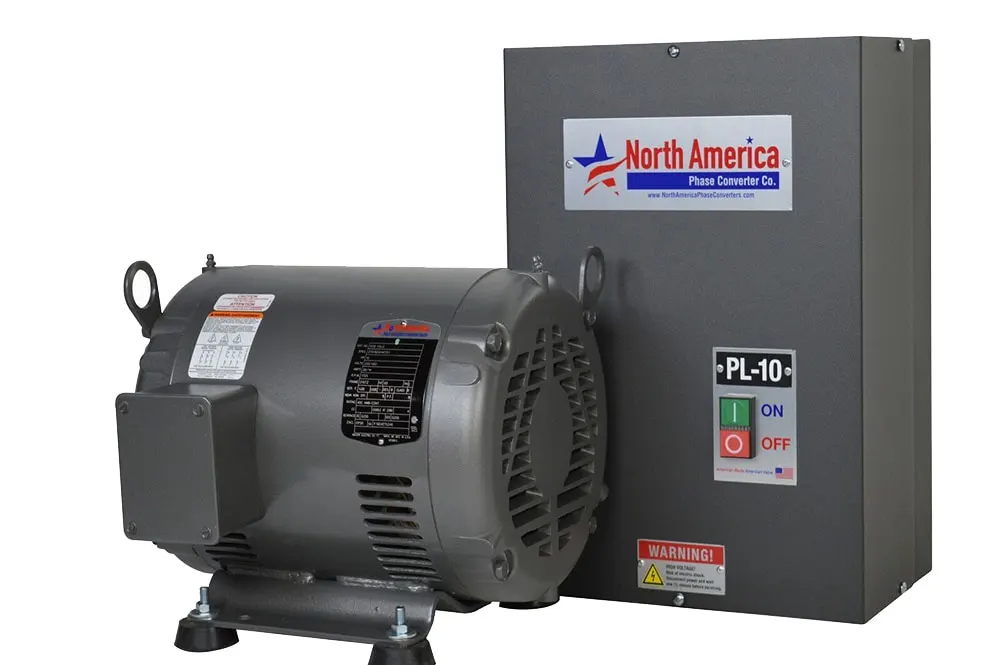

Pro-Line Rotary Phase Converters For Sale
CNC Rotary Balanced, by design! PRO-LINE exceeds industry performance standards; powering sensitive modern CNC and traditional three-phase equipment. North America’s Pro-Line rotary phase converters for sale go further with efficient removable back plates, built-in motor starter, digital start protection, soft start, and full three-line break; all with simple installation. Reliability is important and supported by a 10-year warranty. In true North American form, we design our Pro-Line rotary phase converters for sale to work; every day, for a very long time.
Do right by your equipment and feed it the balanced power Pro-Line is engineered to offer.
Best Applications: Mills, Lathes, Dough Mixers, Table saws, typical motors, resistive and inductive loads. Join the NAPCES family and get back to work.
Control Panel Features
- Built-In Motor Starter with Start/Stop Switch
- Digitally Controlled & Protected Start Circuit
- Complete Phase Power Failure Protection
- CNC Voltage Balancing
- Power “ON” Indicator Light
- Easy Installation
- Distribution Block Connections
- Power Factor Corrected
- Made In the USA
- Lifetime Warranties
Idler Motor Features
- Custom Made Rotary Phase Converter Generators
- Low Impedance/High Efficiency Design
- ODP (Indoor) Standard, TEFC (Weatherproof) Available
- Custom Copper Windings and Rotor
- Made by ABB / Baldor Electric USA
- Made in America
- Sealed Bearings
- Soft Start
Available Upgrades
- UL Listed Control Panels
- Wireless Remote Starter
- Wired Remote Switches
- 480 Volt Control Panels
- Floor Mounting Kits
- Automatic Controls
- Power Time Delays
- Plugs and Outlets
Pro-Line Model Comparison Chart
Notes:
All amperage in table reflect 208 to 250 volt usage
Pricing includes “Rotary Phase Converter Control Panel” and “Idler Generator”
Please contact us by phone (877.545.2926) or email (info@napces.com) if you have any questions
Quick Sizing Chart for Pro-Line Rotary Phase Converters
| Phase Converter Model | Motor Loads (Horsepower) | CNC, Resistive & Inductive Loads | Phase Converter Model | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Easy | Med | Hard | Very Hard | Total Amps | Total kVA | Total kW | Spindle HP | ||
| PL-3 | 2.5 | 2 | 1.5 | 1 | 4 | 1.6 | 1.1 | 1.5 | PL-3 |
| PL-5 | 3 | 3 | 2 | 1.5 | 7 | 2.9 | 1.7 | 2.5 | PL-5 |
| PL-7 | 5 | 5 | 3 | 2.5 | 11 | 4.5 | 2.2 | 3 | PL-7 |
| PL-10 | 7.5 | 6 | 5 | 3 | 15 | 6 | 3.7 | 5 | PL-10 |
| PL-15 | 10 | 7.5 | 6 | 5 | 20 | 8 | 5.6 | 7.5 | PL-15 |
| PL-20 | 15 | 12 | 10 | 7.5 | 25 | 11 | 7.7 | 10 | PL-20 |
| PL-25 | 20 | 15 | 12 | 10 | 30 | 13 | 9.5 | 12 | PL-25 |
| PL-30 | 25 | 20 | 15 | 10 | 37 | 15 | 11.8 | 15 | PL-30 |
| PL-40 | 30 | 25 | 20 | 15 | 50 | 21 | 15.5 | 20 | PL-40 |
| PL-50 | 40 | 30 | 25 | 20 | 61 | 25 | 21.5 | 25 | PL-50 |
| PL-60 | 50 | 40 | 30 | 25 | 72 | 30 | 26.5 | 30 | PL-60 |
| PL-80 | 60 | 50 | 40 | 30 | 100 | 41 | 29.6 | 40 | PL-80 |
| PL-100 | 75 | 60 | 50 | 40 | 122 | 50 | 37.3 | 50 | PL-100 |
Videos about Installation and using the Sizing Tables
Rotary Phase Converter Installation Video
30 Second Video on “How to size a Rotary Phase Converter”
Complete Details of Features
Built-In Motor Starter with Start/Stop Switch
• Self-contained built-in magnetic 3-phase motor starter
• Money saving feature because every rotary phase converter for sale needs a starting mechanism
• Start/Stop switch ideally located on the front of the rotary phase converter control panel for easy access and where it should be
Digitally Controlled & Protected Start Circuit
• The latest in solid state technology
• Patented Differential Voltage Sensing
• Safety Timer – times out to eliminate capacitor failure
• Our Pro Line Rotary Phase Converters for sale are the only phase converters where this technology is available
Complete Phase Power Failure Protection
• Built in protection protects the rotary phase converter and your equipment in the event of a power loss
• During a black out, the Pro-Line Rotary Phase Converter shuts down all 3 legs of power
• Some brands only shut down the generated leg and can cause single phasing when power resumes
CNC Voltage Balancing
• CNC Voltage Balancing allows you to run even the most sensitive machines
• Voltage balanced phase-to-phase to within 5% or better
• These Pro Line Rotary Phase Converters for sale offer the largest voltage balanced range on the market
Power “ON” Indicator Light
• Shops are a noisy place. This bright light on the front panel lets you know your Pro Line Rotary Phase Converter is up and running.
Easy Installation
• Removable back plate design makes the rotary phase converter control panel enclosure light and easy to install
• Terminal block connections make wiring a snap
• Knockout placements on on the bottom and right side allows easy wiring access
Power Distribution/Terminal Connection
• Simply strip, place and tighten wires
• Generously over-sized power distribution blocks make wiring a Pro Line Rotary Phase Converter a snap
Made In the USA
• These Pro Line Rotary Phase Converters for sale are proudly made in Wisconsin
• Built by a UL 508A Panel Shop (Not every panel is UL listed)
• Clean design makes for easy inspections
• Din rail mounted components and twist and release capacitors
Custom made Generators by ABB/Baldor USA
• Purpose built with Soft Start for low inrush starting
• Custom copper windings and rotor
• ISR magnetic Windings – Immune to Voltage Spikes
Low Impedance/High Efficiency Generator Design
• Designed to allow for the maximum current and voltage balance
• Low resistance produces high efficiency
• Built to run cool and quiet
