PL-10 HP Pro-Line Single to 3-Phase Rotary Phase Converter

Name: PL-10 HP Pro-Line Single to 3-Phase Rotary Phase Converter
SKU: PL-10-1-D3
Price: 1149.00 USD
Availability: InStock

PL-10 with ODP (Open Drip Proof) Idler Motor

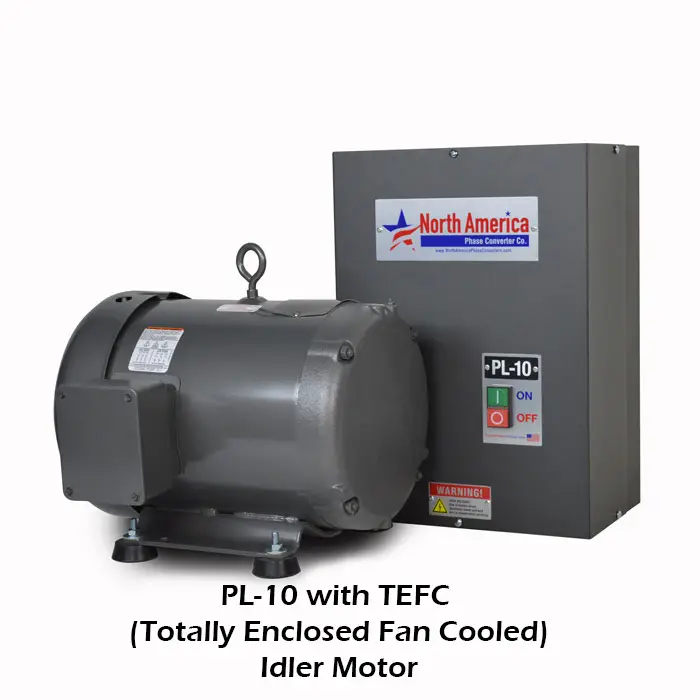

PL-10-T with TEFC (Totally Enclosed Fan Cooled) Idler Motor

PL/UL-10 with UL-Listed Industrial Control Panel

Single phase input power block with L1 and L2 terminal connections inside a NAPCco rotary phase converter

PL-10 Pro-Line – 10 HP Rotary Phase Converter

$1,149.00

The PL-10 is a CNC-rated, general-purpose rotary phase converter designed to take typical single-phase service and supply full running current to three-phase equipment.

What’s Included with the Pro-Line PL-10 HP Rotary Phase Converter

Control Panel
- NEMA 1 Enclosure (Indoor)
- Built-in Motor Starter
- Digitally Controlled and Protected Start Circuit
- Pre-Wired and Ready to Install
- 10 Year Parts Warranty/Lifetime Labor Warranty
ABB-Baldor Electric 10 HP Custom-Made Idler Motor
- ODP (Open Drip Proof) – Indoor Rated
- Soft Start
- Copper Windings
Fast Flat-rate UPS/FedEx Ground Shipping: $99 to anywhere in the lower 48
Financing Available: Click here to apply online in minutes
Stock Status: In stock

(Download PL-10 Spec Sheet PDF)

SKU: PL-10-1-D3 Category: Pro-Line

Description
Additional information

Description

PL-10 BEST SIZED FOR: pl10
Recommended Starting Load: 5 HP
Recommended 3 Phase FLA Sizing: 15 Amps
Total Combined Load: Please Call for Sizing (877) 545-2926

What Can the PL-10 Power?

Easy Motor Loads up to 7.5 HP: Table saw, drill press, milling machine

Medium Motor Loads up to 6 HP: Belt sander, grinder, mixer

Hard Motor Loads up to 5 HP: Gearhead lathe, dust collector, fan

Very Hard Motor Loads up to 3 HP (Consider Smart-Boost™): Air-Compressor, Sub Pump

CNC and Resistive Loads up to 15 Amps

PL-10 SPECS (Download Spec Sheet): pl10 PL10 UL-10 ul10
Minimum Single-Phase Input Circuit: 30 Amps
Single-Phase Input Voltage: 208 – 250 V
3-Phase Output Voltage: 208 – 250 V (Based on Input)
Voltage Balance: 2 – 5%
Idler Motor HP Size: 10 HP
NAPCco Model Number: PL-10

Additional information

Weight	129 lbs
Dimensions	18 × 12 × 8 in
Series	Pro-Line
HP Rating	10 HP
Recommended Load (HP)	5 HP
Recommended Load (Amps)	15 A
Input Voltage	208-250 V
Output Voltage	208-250 V
Recommended Breaker	30 A
Output Amperage	28 A
Product Origin	USA
