PL-80 Pro-Line 80HP Rotary Phase Converter

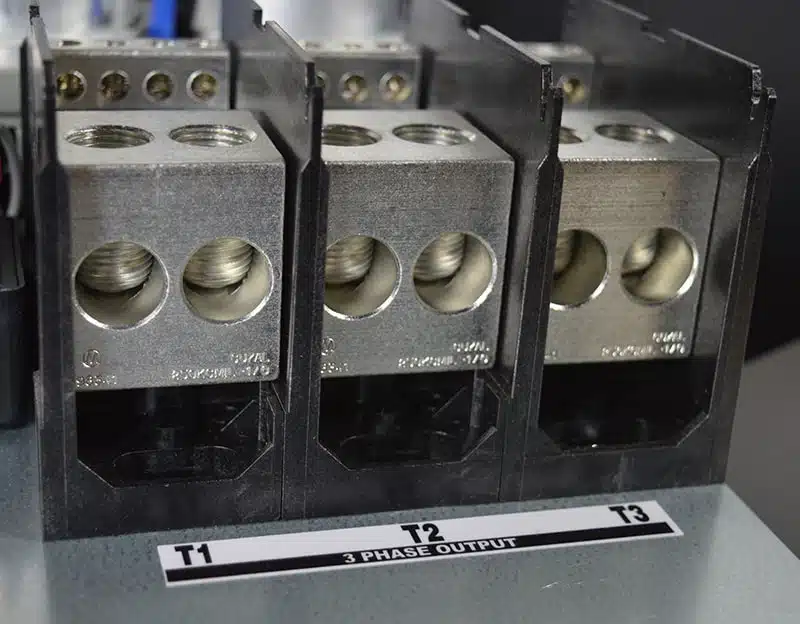

Output Power Block
Main and Start Contactors

Pro-Line Rotary Phase Converter PL-80

$8,579.00

Pro-Line is the Professional Series, digital start, CNC rated, general-purpose rotary phase converter designed to take common single-phase energy and supply full running current to three-phase converter equipment.

What’s Included with the Pro-Line PL-80

  • Control Panel
    • NEMA 1 Enclosure (Indoor)
    • Built-in Motor Starter
    • Digitally Controlled and Protected Start Circuit
  • ABB / Baldor Idler-Generator Motor
    • ODP (Open Drip Proof) – Indoor Rated
    • Soft Start
  • 10-Year Parts / Lifetime Labor Warranty
  • Promotional Flat-rate Shipping ($179.95) via freight truck in the Continental US to a commercial location
    • Additional fees apply for Residential & Lift-gate Delivery
  • Financing Available
    • 475 $
    • 34 $
    • 55 $
    • 125 $
    • 145 $
    • 68 $
SKU: PL-80-1 Category:

Description

PL-80 BEST SIZED FOR:  pl80  UL
Best Performance Single Motor Start:  40HP
Recommended 3 Phase Sizing:   100 Amps
Total Combined Load:  Please Call for Sizing (877) 545-2926

Easy Motor Loads up to 60HP…  Table Saw, Drill Press, Milling Machine
Medium Loads up to 50HP… Belt Sander, Grinder, Mixer
Hard Loads up to 40HP…  Gearhead Lathe, Dust Collector, Fan
Very Hard Loads up to 30HP (Consider Smart-Boost™)…  Air-Compressor, Submersible Pump

PL-80 SPECS (Download Spec Sheet):  pl80  ul-80  ul80
Minimum Single Phase Input Circuit:   175 Amps
Single Phase Input Voltage:   208 – 245 Volts
3 Phase Output Voltage:   208 – 245 (Based on Input)
Voltage Balance:   2 – 5%
Idler HP Size:   80
Model:   PL-80

Additional information

Weight 439 lbs
Dimensions 26 × 18 × 10 in
