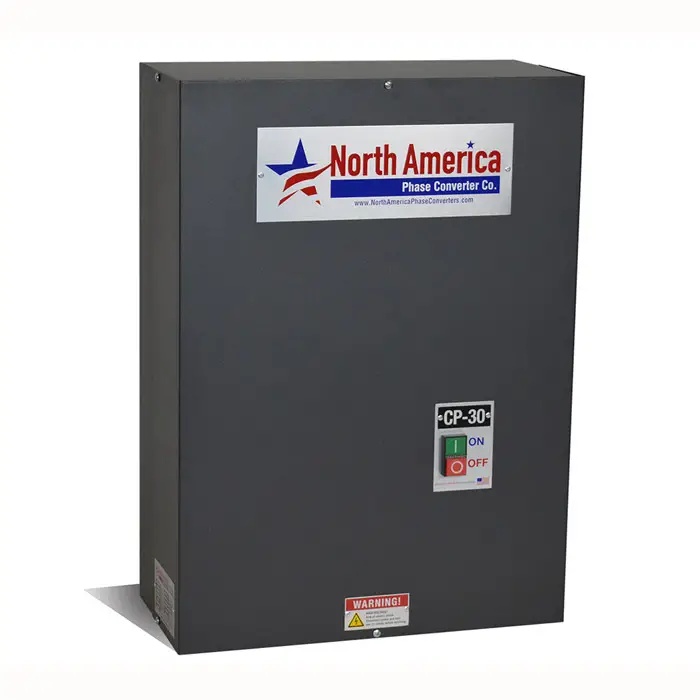

Rotary Phase Converter Control Panel CP-30

Rotary Phase Converter Control Panel CP-30

$724.00

  • Integrated Motor Starter
  • Smart Digital Starting Circuit
  • Phase and Power Loss Protections
  • CNC Voltage Balanced
  • Pilot Light Indicator & Emergency Stop
  • Effortless Installation
  • Quick Block Wire Connections
  • Power Factor Corrected
  • Made in the USA
  • Lifetime Warranty

    • 135 $
    • 25 $
    • 175 $
    • 65 $
    • 79 $
    • 20 $
    • 125 $
SKU: CP-30 Category:

Description

CP-30 BEST SIZED FOR:  cp30
Best Performance Single Motor Start:  15HP
Recommended 3 Phase Sizing:   37 Amps
Total Combined Load:  Please Call for Sizing (877) 545-2926

Easy Motor Loads up to 25HP…  Table Saw, Drill Press, Milling Machine
Medium Loads up to 20HP… Belt Sander, Grinder, Mixer
Hard Loads up to 15HP…  Gearhead Lathe, Dust Collector, Fan
Very Hard Loads up to 10HP (Consider Smart-Boost)…  Air-Compressor, Submersible Pump

CP-30 SPECS (Download Spec Sheet)cp-30
Minimum Single Phase Input Circuit  70 Amps
Single Phase Input Voltage:   208 – 245 Volts
3 Phase Output Voltage:   208 – 245 (Based on Input)
Voltage Balance:   2 – 5%
Added Idler HP Size:   30
Model:  CP-30

Additional information

Weight 40 lbs
Dimensions 18 × 18 × 8 in
