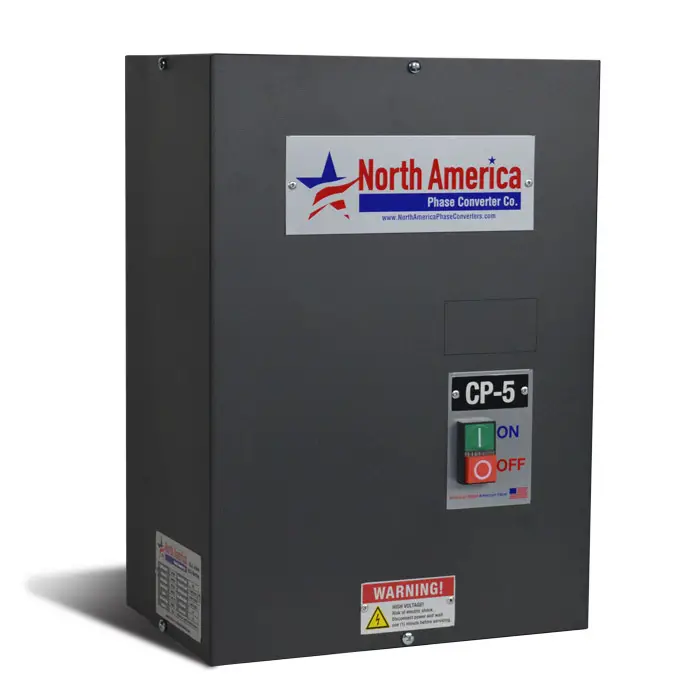

Rotary Phase Converter Control Panel CP-5

Rotary Phase Converter Control Panel CP-5

$294.00

  • Integrated Motor Starter
  • Smart Digital Starting Circuit
  • Phase and Power Loss Protections
  • CNC Voltage Balanced
  • Pilot Light Indicator & Emergency Stop
  • Effortless Installation
  • Quick Block Wire Connections
  • Power Factor Corrected
  • Made in the USA
  • Lifetime Warranty

    • 75 $
    • 20 $
    • 175 $
    • 65 $
    • 45 $
    • 20 $
    • 75 $
SKU: CP-5 Category:

Description

CP-5 ROTARY PHASE CONVERTER CONTROL PANEL BEST SIZED FOR:  cp5
Best Performance Single Motor Start:  2.5HP
Recommended 3 Phase Sizing:   7 Amps
Total Combined Load:  Please Call for Sizing (877) 545-2926

Easy Motor Loads up to 3HP…  Table Saw, Drill Press, Milling Machine
Medium Loads up to 2.5HP… Belt Sander, Grinder, Mixer
Hard Loads up to 2.0HP…  Gearhead Lathe, Dust Collector, Fan
Very Hard Loads up to 1.5HP (Consider Smart-Boost)…  Air-Compressor, Submersible Pump

CP-5 SPECS (Download Spec Sheet)pl-5
Minimum Single Phase Input Circuit  15 Amps
Single Phase Input Voltage:   208 – 245 Volts
3 Phase Output Voltage:   208 – 245 (Based on Input)
Voltage Balance:   2 – 5%
Added Idler HP Size:   5
Model:  CP-5

Additional information

Weight 18 lbs
Dimensions 17 × 12 × 8 in
