Smart-Boost Rotary Phase Converter SB-3

////Smart-Boost Rotary Phase Converter SB-3

Smart-Boost Rotary Phase Converter SB-3

$678.00

Smart-Boost is a new breed of Digital Rotary Phase Conveters offering 600% more current during heavy load, hard starting motors.  Smart-Boost solid technolog is a solid state digital control is also capable of re-engages the start capacitance at zero degree crossing for zero harmonic voltage support.

What’s Included with the Smart-Boost SB-3

  • Control Panel
    • NEMA 1 Enclosure (Indoor)
    • Built in Motor Starter
    • Digitally Controlled and Protected Start Circuit

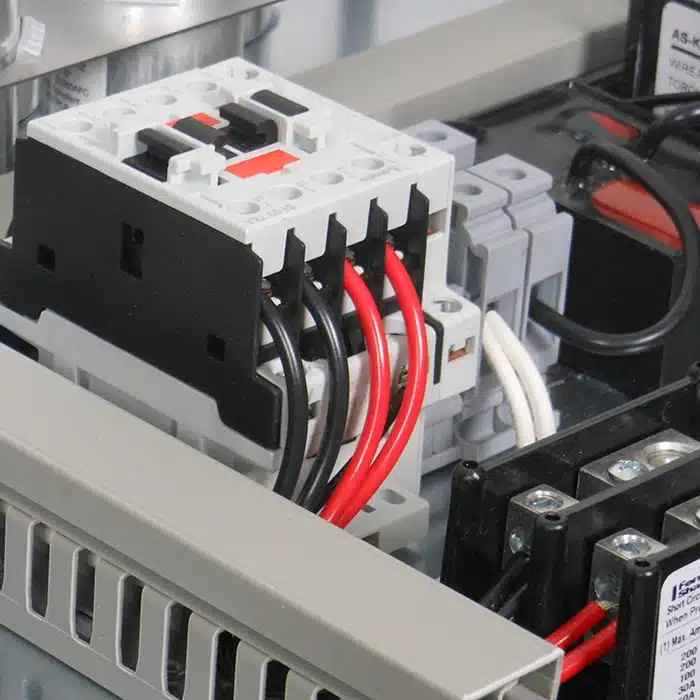

    • Solid State Contactor
    • Self Healing Oil-Filled Motor Start Capacitors
    • 600% Boost Current
  • ABB-Baldor Idler/Generator Motor
    • ODP (Open Drip Proof) – Indoor Rated
    • Soft Start
  • 10 Year Parts / Lifetime Labor Warranty
  • Free Ground Shipping in the Continental US

    • 55 $
    • 55 $
    • 85 $
    • 20 $
    • 20 $
    • 50 $
SKU: SB-3-1-D Categories: ,

Description

SB-3 BEST SIZED FOR:  sb3
Best Performance Single Motor Start:  1.5HP
Recommended 3 Phase Sizing:   4 Amps
Total Combined Load:  Please Call for Sizing (877) 545-2926

Easy Motor Loads up to 2HP…  Table Saw, Drill Press, Milling Machine
Medium Loads up to 2HP… Belt Sander, Grinder, Mixer
Hard Loads up to 1.5HP…  Gearhead Lathe, Dust Collector, Fan
Very Hard Loads up to 1.5HP…  Air-Compressor, Submersible Pump

SB-3 SPECS (Download Spec Sheet):    sb3
Minimum Single Phase Input Circuit  10 Amps
Single Phase Input Voltage:   208 – 245 Volts
3 Phase Output Voltage:   208 – 245 (Based on Input)
Voltage Balance:   5 – 10%
Idler HP Size:   3
Model:   SB-3

Additional information

Weight 97 lbs
Dimensions 18 × 12 × 8 in
