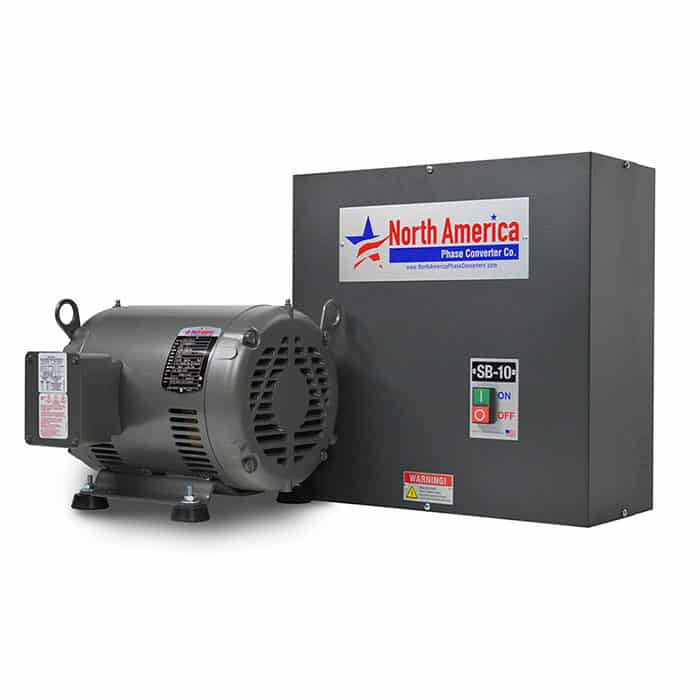

Smart-Boost Rotary Phase Converter SB-10

Home/Phase Converters/Rotary Phase Converters/Smart-Boost™/Smart-Boost Rotary Phase Converter SB-10

Smart-Boost Rotary Phase Converter SB-10

$1,144.00

Smart-Boost™ solid-state digital control rotary phase converters offer an extra 600% heavy-duty motor load current boost; helpful for hard starting air compressors, sub pumps, flywheels, and gearhead lathes.

What’s beyond Industry Standard… Smart-Boost™ SB-10

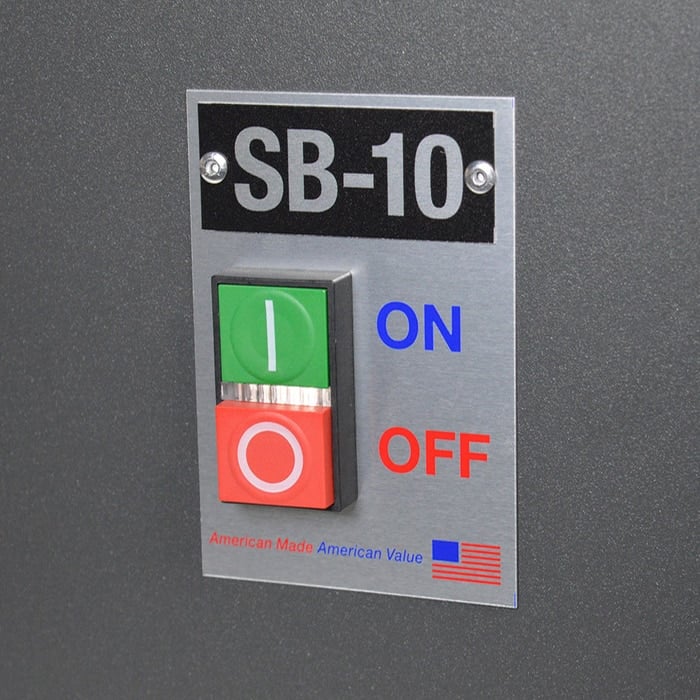

  • Control Panel
    • Solid State Relay
    • Built-in Motor Starter
    • NEMA 1 Enclosure (Indoor)
    • Digital Control 600% Current Booster
    • Self Healing Oil-Filled Motor Start & Run Capacitors
  • ABB-Baldor Idler/Generator Motor
    • Soft Start
    • ODP (Open Drip Proof) – Indoor Rated
    • Low Impedance / High-Efficiency Design
  • 10 Year Parts / Lifetime Labor Warranty
  • Free Ground Shipping in the Continental US
  • Financing Available

    • 55 $
    • 85 $
    • 85 $
    • 20 $
    • 20 $
    • 50 $
SKU: SB-10-1-D3 Categories: ,

Description

SB-10 BEST SIZED FOR:  sb10
Best Performance Single Motor Start:  5HP
Recommended 3 Phase Sizing:   14 Amps
Total Combined Load:  Please Call for Sizing (877) 545-2926

Easy Motor Loads up to 7.5HP…  Table Saw, Drill Press, Milling Machine
Medium Loads up to 6HP… Belt Sanders Grinder, Mixer
Hard Loads up to 5HP…  Gearhead Lathe, Dust Collector, Fan
Very Hard Loads up to 5HP …  Air-Compressor, Submersible Pump

SB-10 SPECS (Download Spec Sheet)sb10
Minimum Single Phase Input Circuit  30 Amps
Single Phase Input Voltage:   208 – 245 Volts
3 Phase Output Voltage:   208 – 245 (Based on Input)
Voltage Balance:   5 – 10%
Idler HP Size:   10
Model:   SB-10

Additional information

Weight 109 lbs
Dimensions 18 × 12 × 8 in
