In industrial and commercial environments, achieving optimal motor control is crucial for improving performance, minimizing energy consumption, and extending the life of machinery. Two strong technologies often used for managing electric motors are Variable Frequency Drives (VFDs) and phase converters. While both play important parts in motor operation, they work differently, and choosing the correct choice depends on your exact business requirements and operational goals.
In this article, we will dive into the differences between VFDs and phase converters, exploring their roles, key benefits, and the unique benefits of using a phase converter for your operation.
What Are VFDs and Phase Converters?
Before we compare the two technologies, it’s important to understand how each one works:
- Phase Converter: A phase converter is a machine that converts single-phase electrical power into three-phase electrical power. This is particularly helpful in places where three-phase power isn’t available, yet three-phase equipment like motors, compressors, and pumps is still required. Phase converters allow businesses to use robust, energy-efficient three-phase motors without the need to upgrade their whole electrical system.
- VFD (Variable Frequency Drive): A VFD is an electronic device that adjusts the frequency and voltage supplied to a motor. By changing the motor’s speed and torque, VFDs provide precise control, reduce energy waste, and help protect the motor. They are ideal for applications where load and speed change frequently, allowing businesses to optimize motor efficiency.
How Do VFDs and Phase Converters Work?
The core difference in functionality comes down to how each system operates:
- Phase Converters: Phase converters help to produce three-phase power supply from a single-phase input. Depending on the type of phase converter, this can be achieved using different methods:
- Static Phase Converter: Uses capacitors to generate a third phase of power during motor startup. Once started, the motor is kept started by the two single-phase lines, resulting in a 1/3rd power loss. These are ideal for smaller motors and lighter running loads.

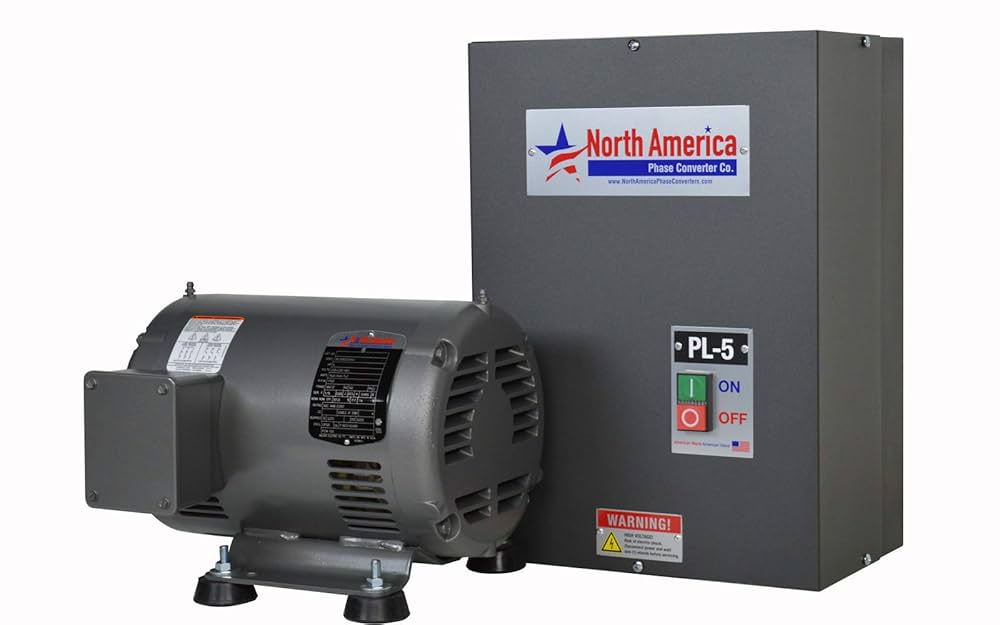

- Rotary Phase Converter: Uses an idler/generator motor to create the third phase, suitable for larger applications that require full power.
- Digital Phase Converter: Creates a third leg of power through a micro-processor and IGBT switching. This provides a stable and balanced output, making it perfect for industrial use where precision and stability are key.
- VFDs: A VFD transforms incoming AC power into DC and then back to AC at a variable frequency. By adjusting the frequency, the VFD controls the motor’s speed and torque, providing flexibility in motor operation. This adjustment is tuned to match the load demands, offering control, energy savings, and performance in systems that need variable speed operation.
Applications: When to Choose Phase Converters
Although VFDs and phase converters both enable motor operation, phase converters excel in certain scenarios where VFDs may not be the most practical or cost-effective solution:
- Phase Converters: These devices are especially useful when you need to run three-phase equipment in environments where only single-phase power is available. This includes:
- Remote or rural areas: Where three-phase power isn’t accessible, yet three-phase motors are still needed for heavy-duty machinery.
- Small businesses or workshops: Where the cost of installing a full three-phase system is prohibitive, but the need for three-phase equipment is essential for operation.
- Agricultural operations: In places lacking three-phase infrastructure, but where industrial equipment needs to run efficiently and reliably.
- Multiple loads: One phase converter can run multiple machines at the same time.
- Resistive/Inductive Loads: A phase converter will also run non-motor loads.
Energy Efficiency: Phase Converters Keep Operations Lean
While VFDs are widely known for their energy-saving capabilities, phase converters also contribute to improved efficiency in certain applications. Although a phase converter doesn’t directly save energy in the way a VFD does by adjusting motor speed, it enables businesses to use three-phase motors in locations where they might otherwise need to settle for less efficient single-phase motors.
Three-phase motors are known for their efficiency and ability to handle heavier loads, and using a phase converter allows these motors to run in single-phase environments. This can make a significant difference in the long-term energy consumption of a business, as three-phase motors are often more efficient for heavy-duty tasks.
Cost-Effective Solutions with Phase Converters
For businesses with limited budgets or in locations where installing a full three-phase electrical system is unfeasible, phase converters are an extremely inexpensive solution. The initial cost of a phase converter is much lower in the long run than the cost of installing three-phase power lines to a remote location. This makes phase converters a viable option for many businesses that need to run three-phase equipment in a single-phase environment.
By providing an economical way to power industrial-grade motors, phase converters help small businesses, agricultural operations, and even remote workshops use heavy-duty machinery without having to invest in expensive electrical upgrades.
Motor Protection: How Phase Converters Safeguard Equipment
One of the key benefits of using phase converters is their ability to guarantee a balanced power supply, which is crucial for protecting motors. When operating on single-phase power, there is often the risk of power imbalances, which can lead to overheating and equipment damage. Phase converters help control these issues by generating a stable three-phase output, protecting your equipment from electrical damage.
This protection extends the life of motors and ensures that they run smoothly, without the risk of overheating or premature failure. In many cases, this added protection can save businesses the high costs of motor repairs and replacements.
Installation and Maintenance: Simple and Hassle-Free
Another reason why many businesses opt for phase converters is their simplicity in installation and maintenance. Unlike VFDs, which require specialized knowledge to install and maintain, phase converters are easy to set up and operate. Most phase converter units come pre-configured and ready to use, making them ideal for operations that don’t have dedicated technical staff. Our experienced team of technicians can also help answer any installation- related questions.
Maintenance of phase converters is generally minimal—just annual inspections to confirm the system is running correctly and the parts are in good condition. This comfort of use makes phase converters a great choice for small business owners or rural operations who may not have the technical expertise to handle complicated motor control systems.
When to Choose a VFD Instead
Although this guide emphasizes phase converters, it’s important to acknowledge where VFDs excel:
- Applications requiring variable speed, such as fans, blowers, and conveyors.
- Scenarios where precise torque control and energy optimization are critical.
- Environments with access to three-phase power looking to improve efficiency and control.
If your application needs speed control more than power conversion, a VFD may be the right tool.
Conclusion:
Phase converters offer exceptional value by providing an affordable, easy solution for running three-phase motors in single-phase environments. They protect equipment, reduce costly electrical upgrades, and enable energy-efficient motors, boosting your operation’s efficiency and cost-effectiveness. Contact us for expert advice on North America phase converters and find the perfect solution for your needs.
